Name: DS595-CI
SKU: DS595-CI
Availability: InStock

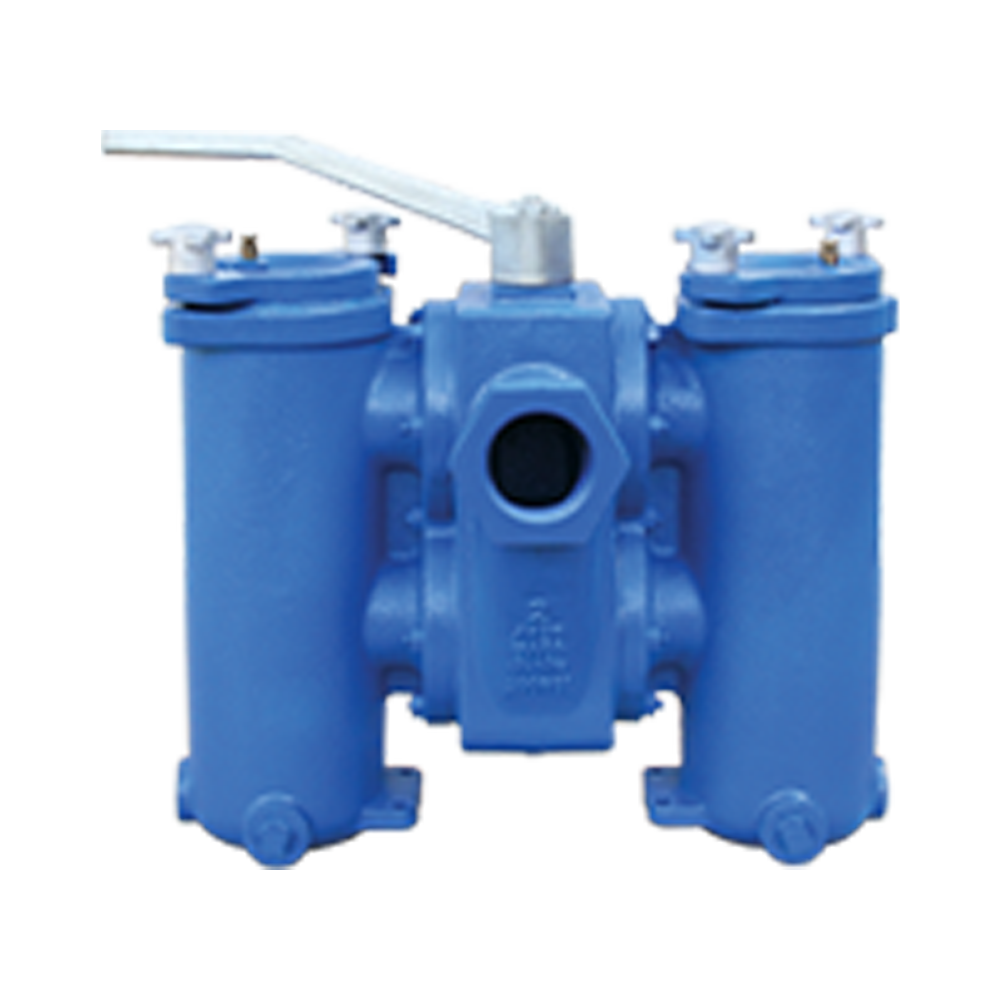

DS595-CI

Duplex Strainer Specification

Body Material: Cast Iron (A126 Gr. B)
End Connection: Threaded Ends
ASME Rating: Class 125
Size Range: 3/4 in ~ 2 1/2 in

Pressure Rating

Cast Iron - ASTM A126 Gr. B - Class 125

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Dual-Ball Diverter Design
Easy to Operate
Reduced "In-line" Maintenance
Endless Screen Options
Ideal for Non-Interruptible Applications

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
DS595-CI	DS595-CI	0	DS595I0075	Cast Iron	Threaded	Class 125	3,555.00	3,769.00
DS595-CI	DS595-CI	1	DS595I0100	Cast Iron	Threaded	Class 125	3,555.00	3,769.00
DS595-CI	DS595-CI	1	DS595I0125	Cast Iron	Threaded	Class 125	6,044.00	6,407.00
DS595-CI	DS595-CI	1	DS595I0150	Cast Iron	Threaded	Class 125	6,044.00	6,407.00
DS595-CI	DS595-CI	2	DS595I0200	Cast Iron	Threaded	Class 125	8,663.00	9,183.00
DS595-CI	DS595-CI	2	DS595I0250	Cast Iron	Threaded	Class 125	12,567.00	13,322.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
