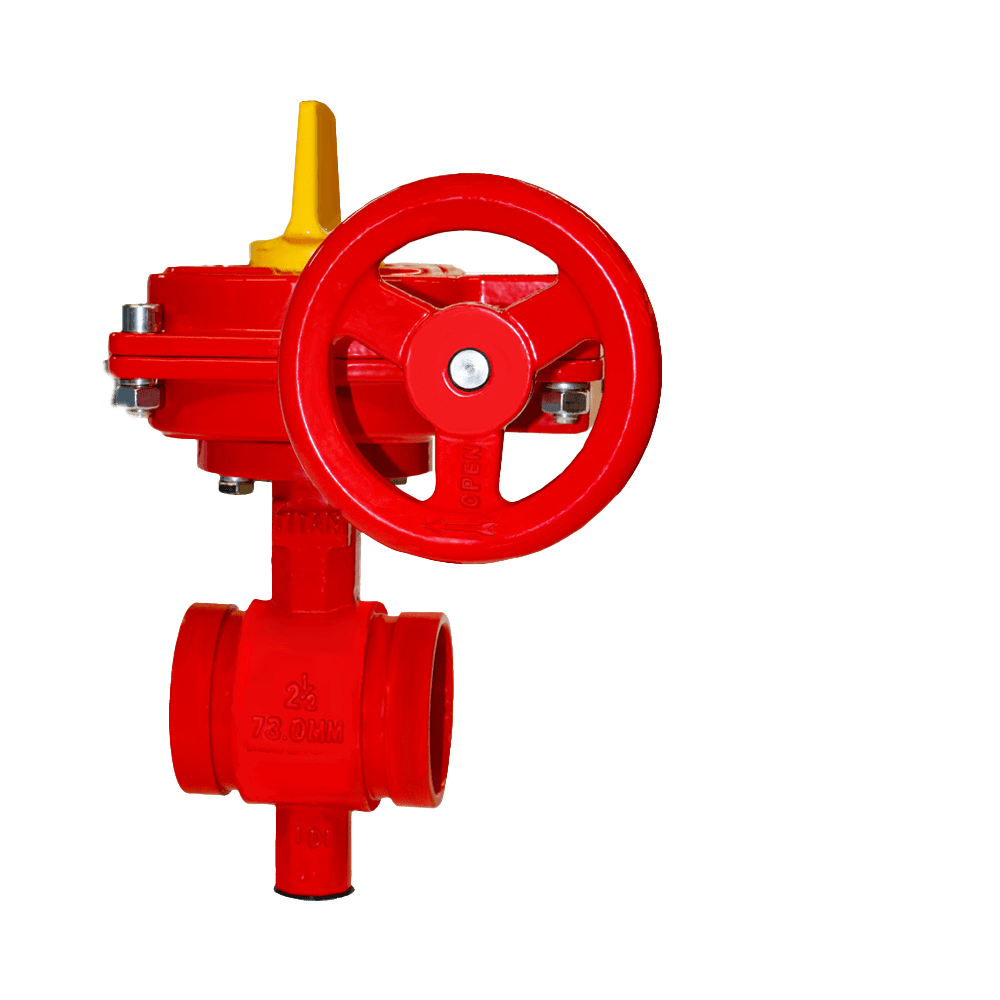

BF77UG-DI Cast Iron Butterfly Valve (Fire Protection)

BF77UG-DI

BF77UG-DI

Valve Specification

Body Material: Ductile Iron (ASTM A536)
End Connection:
ASME Rating: 300 WOG
Size Range: 2 in ~ 12 in

Pressure Rating

Ductile Iron - ASTM A536 - 300 WOG

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Numbers

General Information

Product Features

UL Listed and FM Approved
Complies with MSS-SP-67 & AWWA C606 Specifications
Complies with NSF/ANSI 61 & 372 Standards
Universal Mounting Flange
Quick Connect Grooved-Ends

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BF77UG-DI	BF77UG-DEE	2	BF77UGDEE0200	Ductile Iron	Grooved	Class 150	417.00
BF77UG-DI	BF77UG-DEE	2	BF77UGDEE0250	Ductile Iron	Grooved	Class 150	447.00
BF77UG-DI	BF77UG-DEE	3	BF77UGDEE0300	Ductile Iron	Grooved	Class 150	464.00
BF77UG-DI	BF77UG-DEE	4	BF77UGDEE0400	Ductile Iron	Grooved	Class 150	524.00
BF77UG-DI	BF77UG-DEE	5	BF77UGDEE0500	Ductile Iron	Grooved	Class 150	603.00
BF77UG-DI	BF77UG-DEE	6	BF77UGDEE0600	Ductile Iron	Grooved	Class 150	718.00
BF77UG-DI	BF77UG-DEE	8	BF77UGDEE0800	Ductile Iron	Grooved	Class 150	1,214.00
BF77UG-DI	BF77UG-DEE	10	BF77UGDEE1000	Ductile Iron	Grooved	Class 150	1,561.00
BF77UG-DI	BF77UG-DEE	12	BF77UGDEE1200	Ductile Iron	Grooved	Class 150	1,944.00
		Size	Part Code	Body Material	End Connections

Part Numbers

Available Soon - Check Back Often
