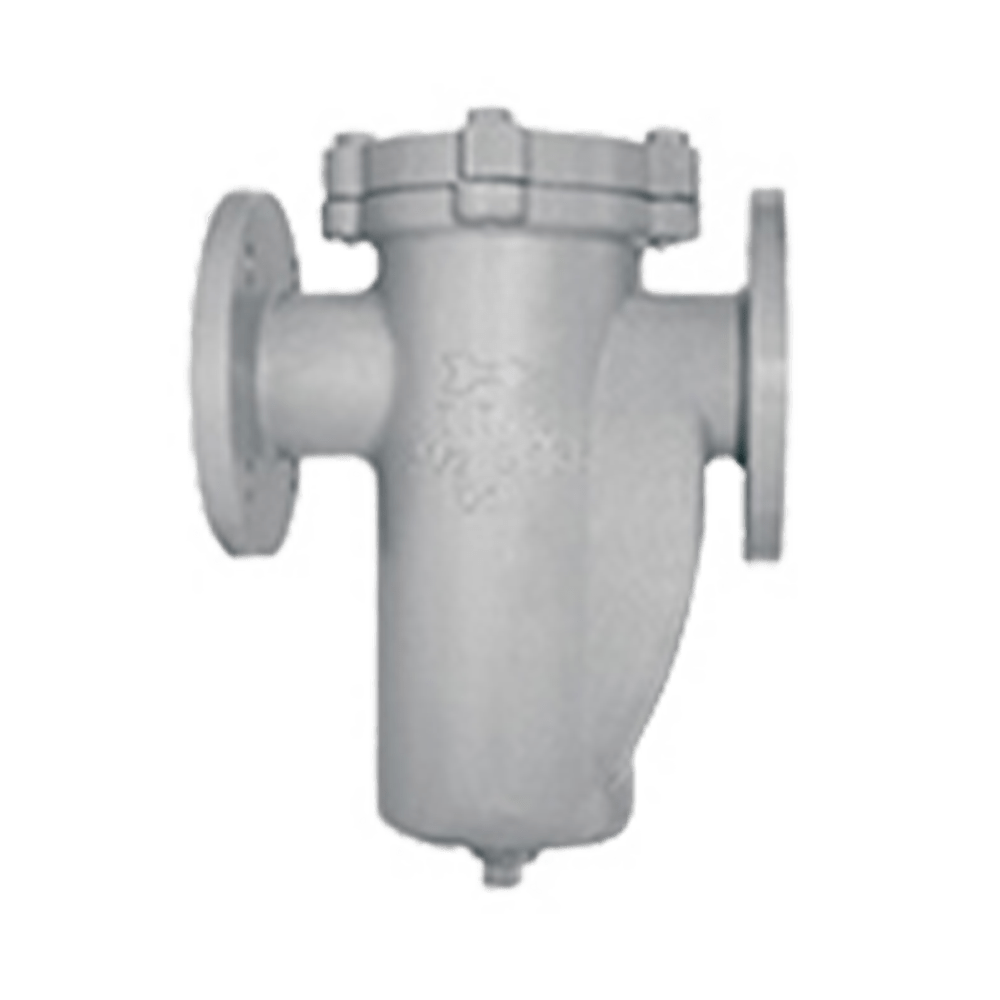

BS35F-CS Carbon Steel Basket Strainer

BS35F-CS

Basket Strainer Specification

Body Material: Carbon Steel (A216 Gr. WCB)
End Connection: Flanged - RF Ends
ASME Rating: Class 150
Size Range: 1 in ~ 8 in

Pressure Rating

Carbon Steel - ASTM A216 Gr. WCB - Class 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Numbers

General Information

Product Features

Large Straining Capacity
Optional Cover Designs
Self-Cleaning Option
Epoxy Painted

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS35F-CS	BS35F-CS	1	BS35FC0100	Carbon Steel	Flanged	Class 150	1,348.00	1,429.00
BS35F-CS	BS35F-CS	1	BS35FC0150	Carbon Steel	Flanged	Class 150	1,965.00	2,083.00
BS35F-CS	BS35F-CS	2	BS35FC0200	Carbon Steel	Flanged	Class 150	2,453.00	2,601.00
BS35F-CS	BS35F-CS	2	BS35FC0250	Carbon Steel	Flanged	Class 150	3,109.00	3,296.00
BS35F-CS	BS35F-CS	3	BS35FC0300	Carbon Steel	Flanged	Class 150	5,302.00	5,621.00
BS35F-CS	BS35F-CS	4	BS35FC0400	Carbon Steel	Flanged	Class 150	6,536.00	6,929.00
BS35F-CS	BS35F-CS	6	BS35FC0600	Carbon Steel	Flanged	Class 150	11,752.00	12,458.00
BS35F-CS	BS35F-CS	8	BS35FC0800	Carbon Steel	Flanged	Class 150	17,231.00	18,265.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Numbers

Available Soon -- Check Back Often
