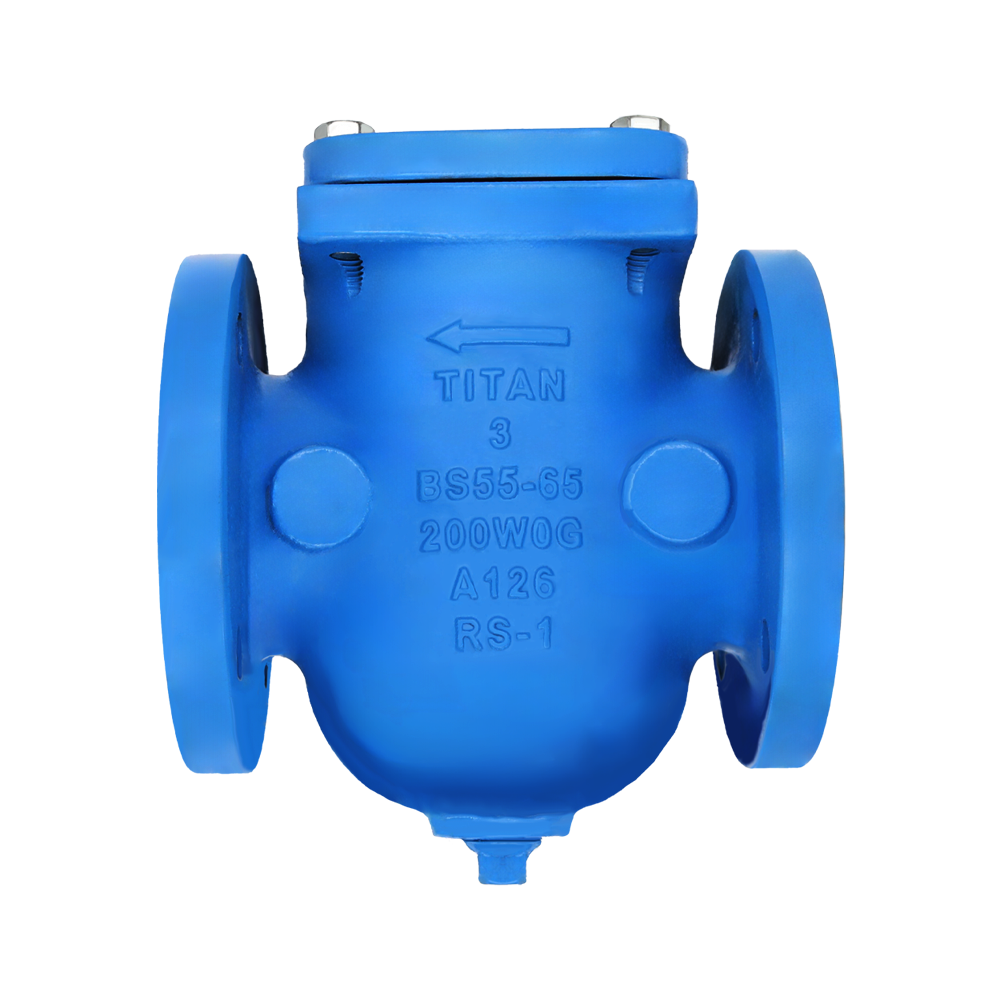

BS65-CI Cast Iron Basket Strainer

BS65-CI

Basket Strainer Specification

Body Material: Cast Iron (A126 Gr. B)
End Connection: Flanged - FF Ends
ASME Rating: Class 125
Size Range: 2 in ~ 20 in

Pressure Rating

Cast Iron - ASTM A126 Gr. B - Class 125
Cast Iron - ASTM A126 Gr. B - Class 125

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Numbers

General Information

Product Features

Untapped Gauge Bosses (Optional for Inlet and Outlet Gauge Taps)
Large Straining Capacity
Side Drain Standard (Optional Bottom Drain)
Self-Cleaning Options
Epoxy Painted

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS65-CI	BS65-CI	2	BS65I0200	Cast Iron	Flanged	Class 125	749.00	794.00
BS65-CI	BS65-CI	2	BS65I0250	Cast Iron	Flanged	Class 125	911.00	966.00
BS65-CI	BS65-CI	3	BS65I0300	Cast Iron	Flanged	Class 125	955.00	1,013.00
BS65-CI	BS65-CI	4	BS65I0400	Cast Iron	Flanged	Class 125	1,246.00	1,321.00
BS65-CI	BS65-CI	5	BS65I0500	Cast Iron	Flanged	Class 125	1,790.00	1,898.00
BS65-CI	BS65-CI	6	BS65I0600	Cast Iron	Flanged	Class 125	2,418.00	2,564.00
BS65-CI	BS65-CI	8	BS65I0800	Cast Iron	Flanged	Class 125	3,777.00	4,004.00
BS65-CI	BS65-CI	10	BS65I1000	Cast Iron	Flanged	Class 125	6,982.00	7,401.00
BS65-CI	BS65-CI	12	BS65I1200	Cast Iron	Flanged	Class 125	11,510.00	12,201.00
BS65-CI	BS65-CI	14	BS65I1400	Cast Iron	Flanged	Class 125	19,406.00	20,571.00
BS65-CI	BS65-CI	16	BS65I1600	Cast Iron	Flanged	Class 125	33,464.00	35,472.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Numbers

Available Soon -- Check Back Often
