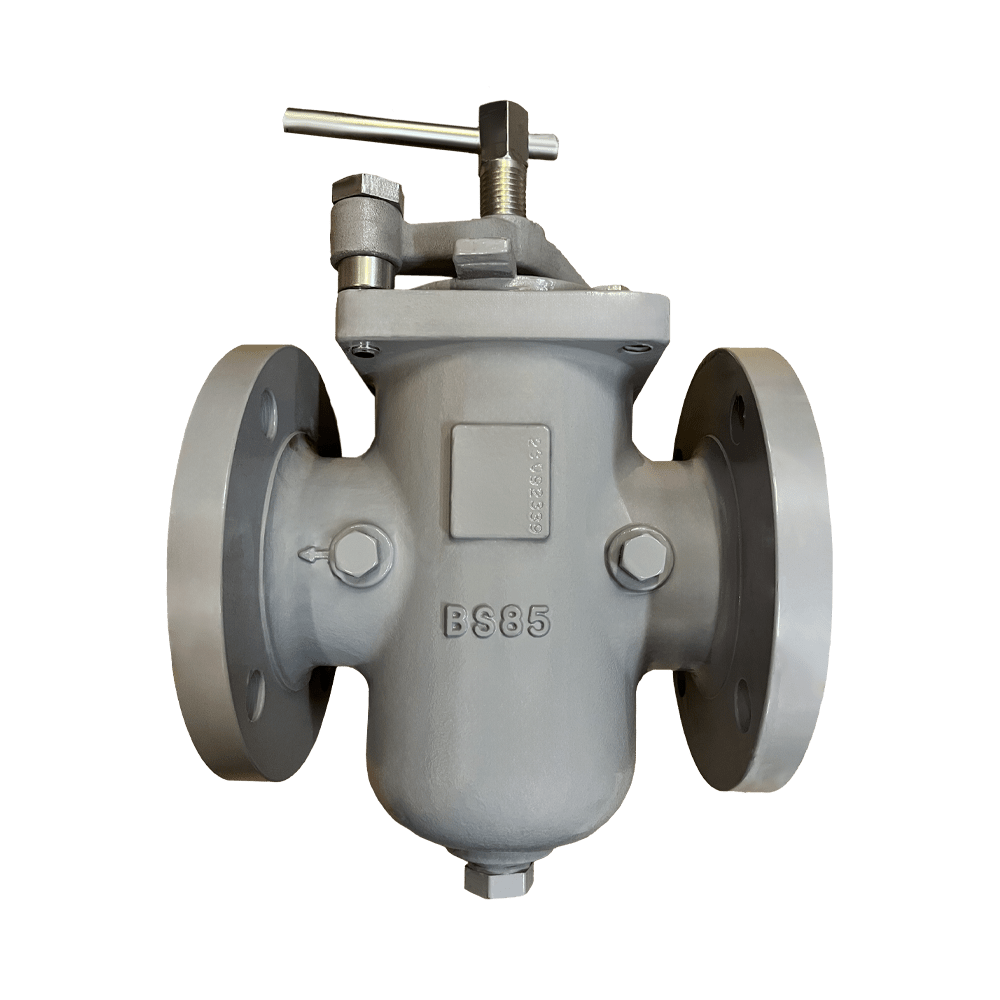

BS85CL-CS

Basket Strainer Specification

Body Material: Carbon Steel (A216 Gr. WCB)
End Connection: Flanged - RF Ends
ASME Rating: Class 150
Size Range: 2 in ~ 12 in

Pressure Rating

Carbon Steel - ASTM A216 Gr. WCB - Class 150

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

General Information

Product Features

Inlet and Outlet Gauge Taps
Large Straining Capacity
Quick Open Clamp Cover
Self-Cleaning Options
Epoxy Painted

Product Indentification

Product Code

Replacement Straining Element

Replacement Gasket

Rebuild Kit

Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS85CL-CS	BS85CL-CS	2	BS85LC0200	Carbon Steel	Flanged	Class 150	1,867.00	2,029.00
BS85CL-CS	BS85CL-CS	2	BS85LC0250	Carbon Steel	Flanged	Class 150	2,079.00	2,259.00
BS85CL-CS	BS85CL-CS	3	BS85LC0300	Carbon Steel	Flanged	Class 150	2,655.00	2,883.00
BS85CL-CS	BS85CL-CS	4	BS85LC0400	Carbon Steel	Flanged	Class 150	3,568.00	3,875.00
BS85CL-CS	BS85CL-CS	6	BS85LC0600	Carbon Steel	Flanged	Class 150	6,655.00	7,228.00
BS85CL-CS	BS85CL-CS	8	BS85LC0800	Carbon Steel	Flanged	Class 150	10,258.00	11,137.00
BS85CL-CS	BS85CL-CS	10	BS85LC1000	Carbon Steel	Flanged	Class 150	12,652.00	13,738.00
BS85CL-CS	BS85CL-CS	12	BS85LC1200	Carbon Steel	Flanged	Class 150	23,721.00	25,755.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
