Name: BS86-CS
SKU: BS86-CS
Availability: InStock

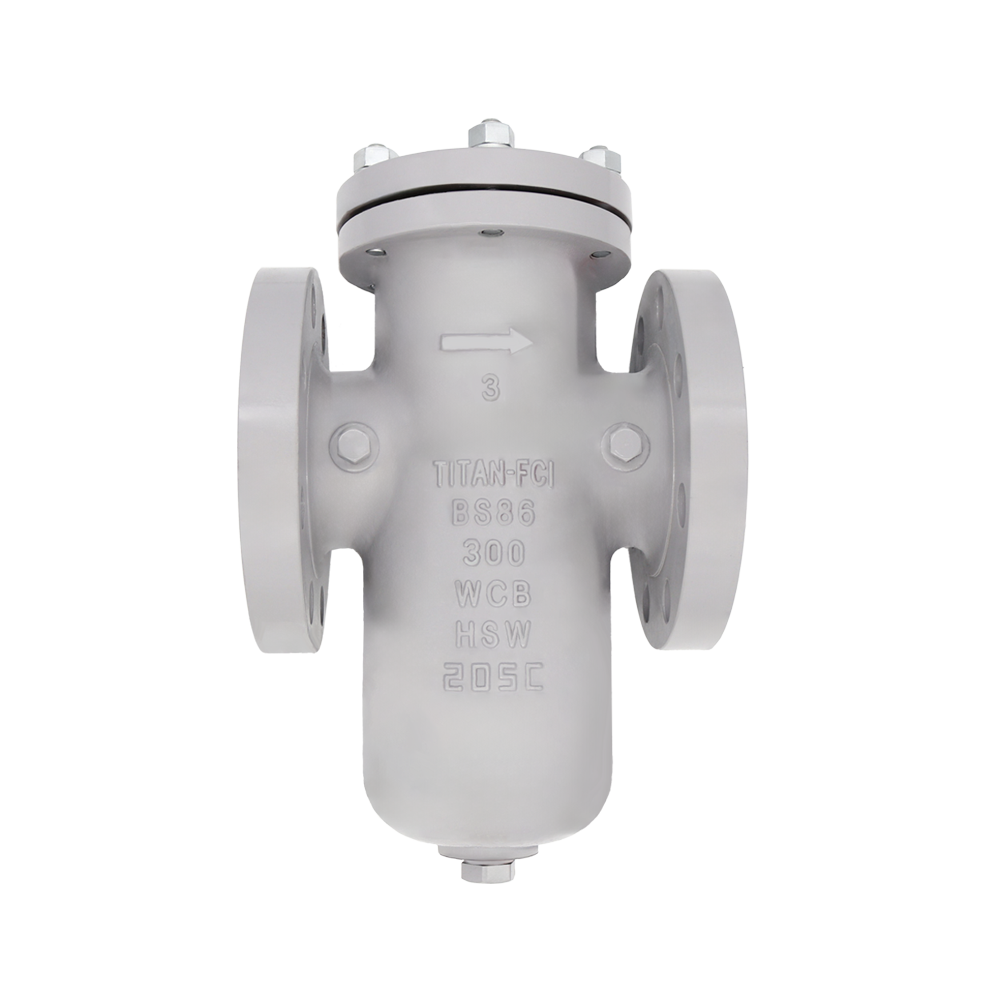

BS86-CS

Basket Strainer Specification

Body Material: Carbon Steel (A216 Gr. WCB)
End Connection: Flanged - FF Ends
ASME Rating: Class 300
Size Range: 2 in ~ 12 in

Pressure Rating

Carbon Steel - ASTM A216 GR. WCB - Class 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Numbers

General Information

Product Features

Inlet and Outlet Gauge Taps
Large Straining Capacity
Optional Cover Designs
Self-Cleaning Options
Epoxy Painted

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS86-CS	BS86-CS	2	BS86C0200	Carbon Steel	Flanged	Class 300	2,359.00	2,501.00
BS86-CS	BS86-CS	2	BS86C0250	Carbon Steel	Flanged	Class 300	3,207.00	3,400.00
BS86-CS	BS86-CS	3	BS86C0300	Carbon Steel	Flanged	Class 300	3,524.00	3,736.00
BS86-CS	BS86-CS	4	BS86C0400	Carbon Steel	Flanged	Class 300	4,916.00	5,211.00
BS86-CS	BS86-CS	6	BS86C0600	Carbon Steel	Flanged	Class 300	8,785.00	9,313.00
BS86-CS	BS86-CS	8	BS86C0800	Carbon Steel	Flanged	Class 300	12,084.00	12,810.00
BS86-CS	BS86-CS	10	BS86C1000	Carbon Steel	Flanged	Class 300	19,920.00	21,116.00
BS86-CS	BS86-CS	12	BS86C1200	Carbon Steel	Flanged	Class 300	34,610.00	36,687.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Numbers

Available Soon -- Check Back Often
