Name: BS86-SS
SKU: BS86-SS
Availability: InStock

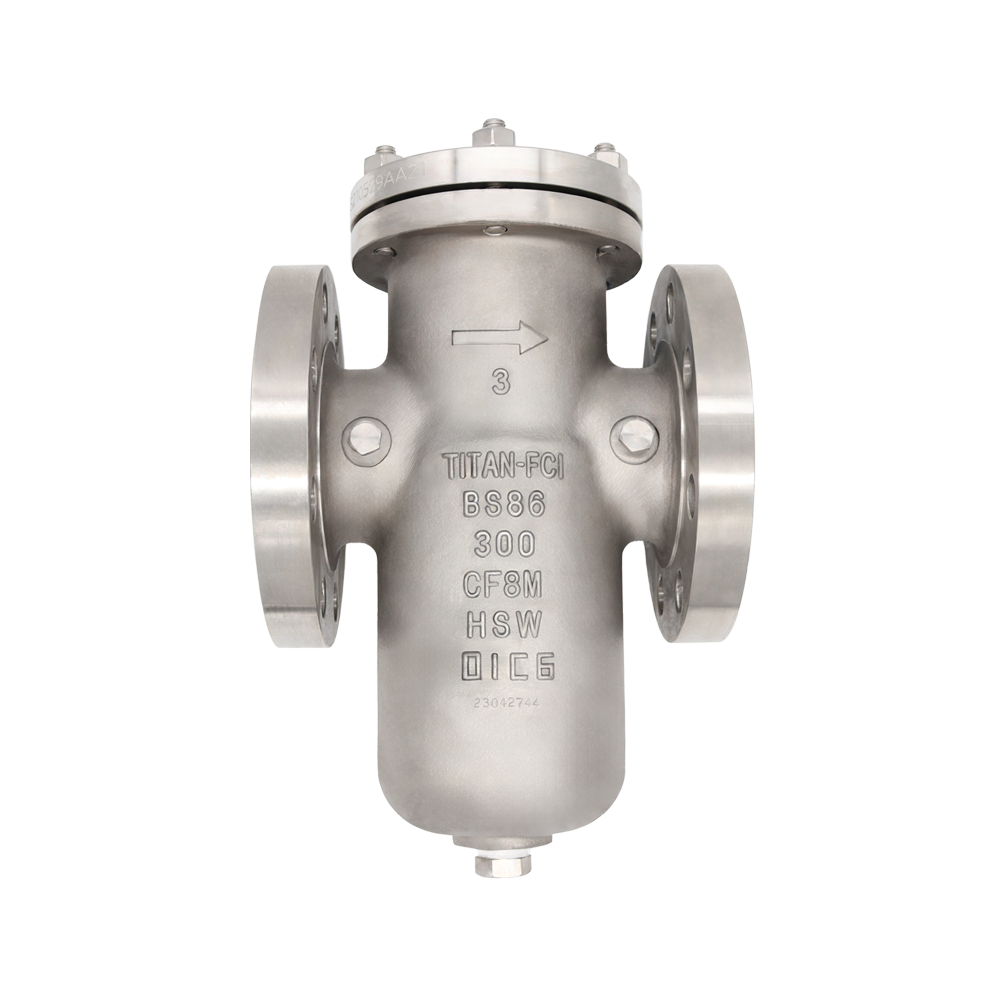

BS86-SS

Basket Strainer Specification

Body Material: Stainless Steel (A351 Gr. CF8M)
End Connection: Flanged - FF Ends
ASME Rating: Class 300
Size Range: 2 in ~ 12 in

Pressure Rating

Stainless Steel - ASTM A351 GR. CF8M - CLASS 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

General Information

Product Features

Inlet and Outlet Gauge Taps
Large Straining Capacity
Optional Cover Designs
Self-Cleaning Options
Epoxy Painted

Product Indentification

Product Code

Replacement Straining Element

Replacement Gasket

Rebuild Kit

Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS86-SS	BS86-SS	2	BS86S0200	Stainless Steel	Flanged	Class 300	4,586.00	4,981.00
BS86-SS	BS86-SS	2	BS86S0250	Stainless Steel	Flanged	Class 300	6,638.00	7,209.00
BS86-SS	BS86-SS	3	BS86S0300	Stainless Steel	Flanged	Class 300	6,978.00	7,690.00
BS86-SS	BS86-SS	4	BS86S0400	Stainless Steel	Flanged	Class 300	9,710.00	10,674.00
BS86-SS	BS86-SS	6	BS86S0600	Stainless Steel	Flanged	Class 300	18,509.00	20,210.00
BS86-SS	BS86-SS	8	BS86S0800	Stainless Steel	Flanged	Class 300	32,928.00	35,750.00
BS86-SS	BS86-SS	10	BS86S1000	Stainless Steel	Flanged	Class 300	50,017.00	54,302.00
BS86-SS	BS86-SS	12	BS86S1200	Stainless Steel	Flanged	Class 300	85,752.00	93,632.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
