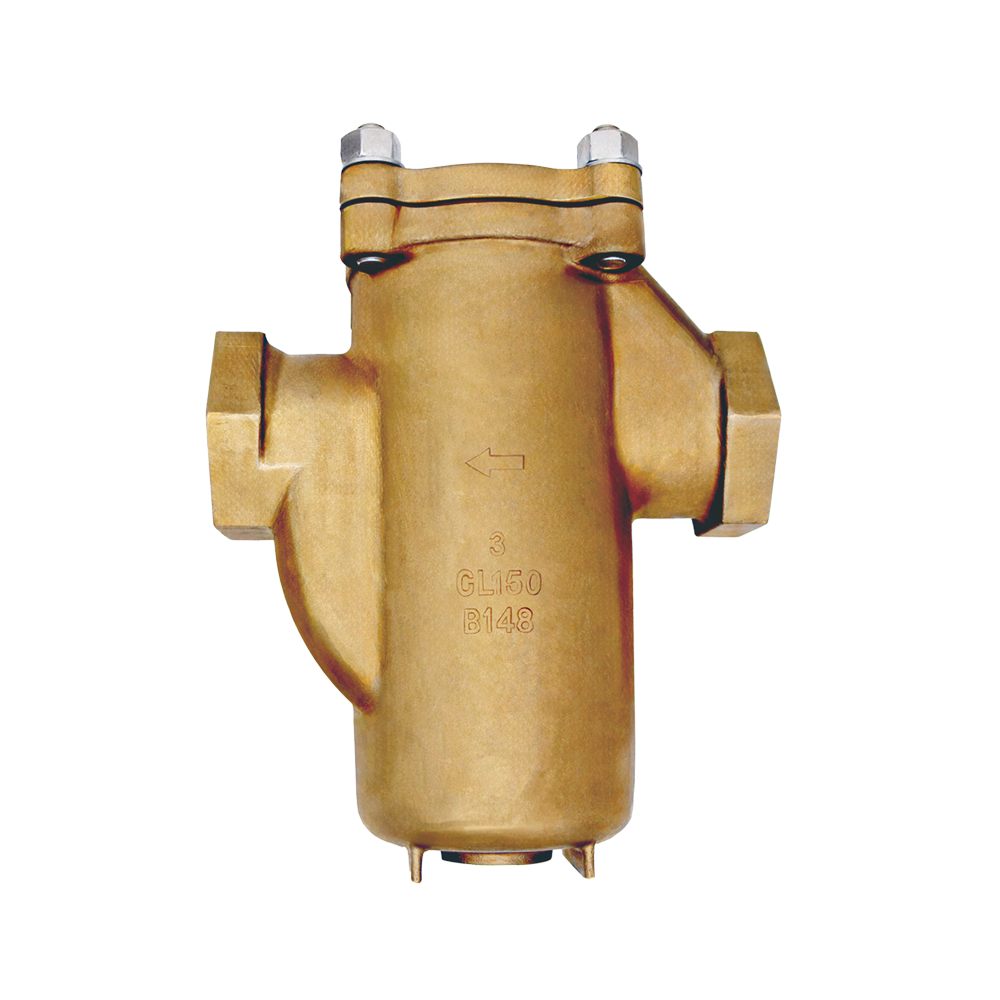

BS87-AB

Basket Strainer Specification

Body Material: Aluminum Bronze (B148)
End Connection: Threaded Ends
ASME Rating: Class 150
Size Range: 3/4 in ~ 3 in

Pressure Rating

Aluminum Bronze - ASTM B148 Gr. 9D - Class 150

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

General Information

Product Features

Better Flow Characteristics
Finer Filtrations
Large Straining Capacity
Numerous Straining Element Options
ASTM B148 Body Material

Product Indentification

Product Code

Replacement Straining Element

Replacement Gasket

Rebuild Kit

Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS87-AB	BS87-AB	0	BS87AB0075	Aluminum Bronze	Flanged	Class 150	1,703.00	1,861.00
BS87-AB	BS87-AB	1	BS87AB0100	Aluminum Bronze	Flanged	Class 150	2,222.00	2,427.00
BS87-AB	BS87-AB	1	BS87AB0150	Aluminum Bronze	Flanged	Class 150	3,278.00	3,579.00
BS87-AB	BS87-AB	2	BS87AB0200	Aluminum Bronze	Flanged	Class 150	4,058.00	4,431.00
BS87-AB	BS87-AB	2	BS87AB0250	Aluminum Bronze	Flanged	Class 150	5,132.00	5,603.00
BS87-AB	BS87-AB	3	BS87AB0300	Aluminum Bronze	Flanged	Class 150	5,688.00	6,212.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
