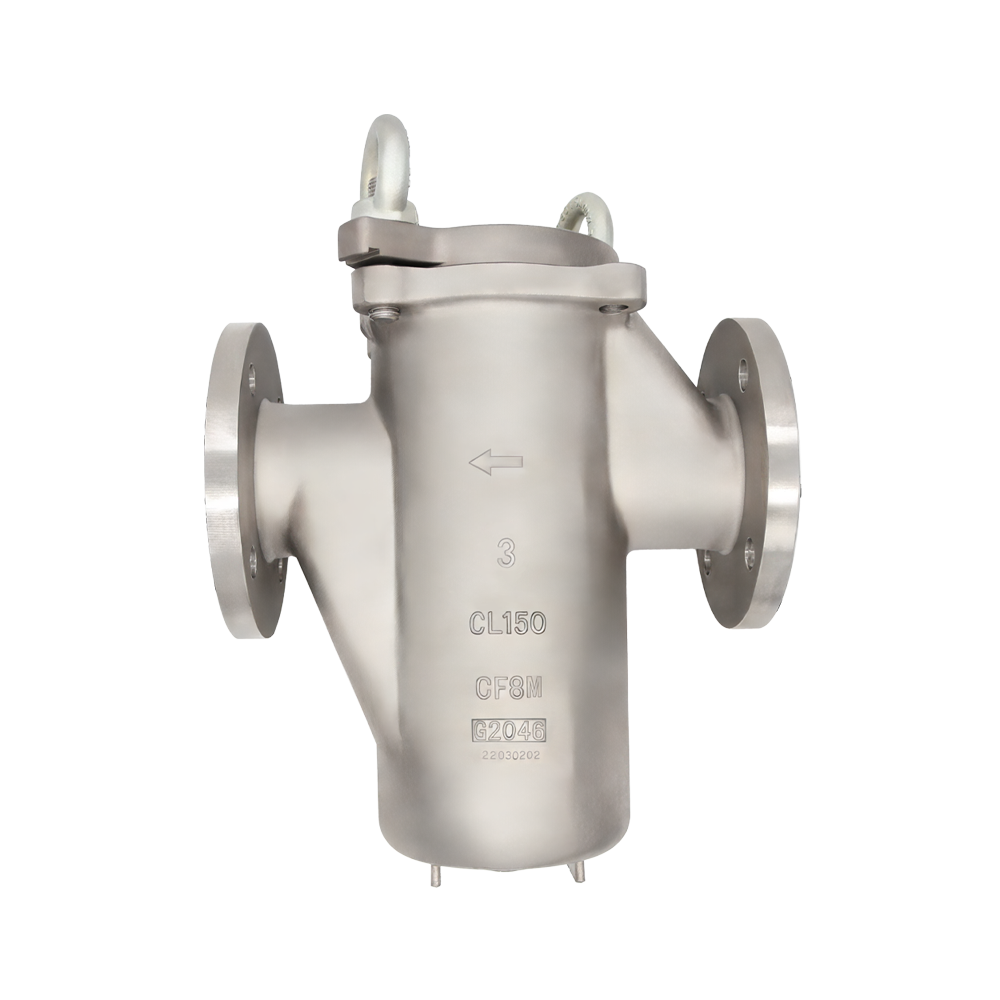

BS87F-SS

Basket Strainer Specification

Body Material: Stainless Steel (A351 Gr. CF8M)
End Connection: Flanged - RF Ends
ASME Rating: Class 150
Size Range: 1 in ~ 16 in

Pressure Rating

Stainless Steel - ASTM A351 GR. CF8M - Class 150

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

General Information

Product Features

Large Straining Capacity
Optional Cover Designs
Self-Cleaning Options
Epoxy Painted

Product Indentification

Product Code

Replacement Straining Element

Replacement Gasket

Rebuild Kit

Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
BS87F-SS	BS87F-SS	1	BS87FS0100	Stainless Steel	Flanged	Class 150	1,839.00	1,998.00
BS87F-SS	BS87F-SS	1	BS87FS0150	Stainless Steel	Flanged	Class 150	3,919.00	4,255.00
BS87F-SS	BS87F-SS	2	BS87FS0200	Stainless Steel	Flanged	Class 150	3,919.00	4,255.00
BS87F-SS	BS87F-SS	2	BS87FS0250	Stainless Steel	Flanged	Class 150	5,214.00	5,662.00
BS87F-SS	BS87F-SS	3	BS87FS0300	Stainless Steel	Flanged	Class 150	6,176.00	6,707.00
BS87F-SS	BS87F-SS	4	BS87FS0400	Stainless Steel	Flanged	Class 150	11,386.00	12,363.00
BS87F-SS	BS87F-SS	6	BS87FS0600	Stainless Steel	Flanged	Class 150	26,264.00	28,517.00
BS87F-SS	BS87F-SS	8	BS87FS0800	Stainless Steel	Flanged	Class 150	45,407.00	49,297.00
BS87F-SS	BS87F-SS	10	BS87FS1000	Stainless Steel	Flanged	Class 150	55,669.00	60,439.00
BS87F-SS	BS87F-SS	12	BS87FS1200	Stainless Steel	Flanged	Class 150	78,316.00	85,028.00
BS87F-SS	BS87F-SS	14	BS87FS1400	Stainless Steel	Flanged	Class 150	135,543.00	147,158.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
