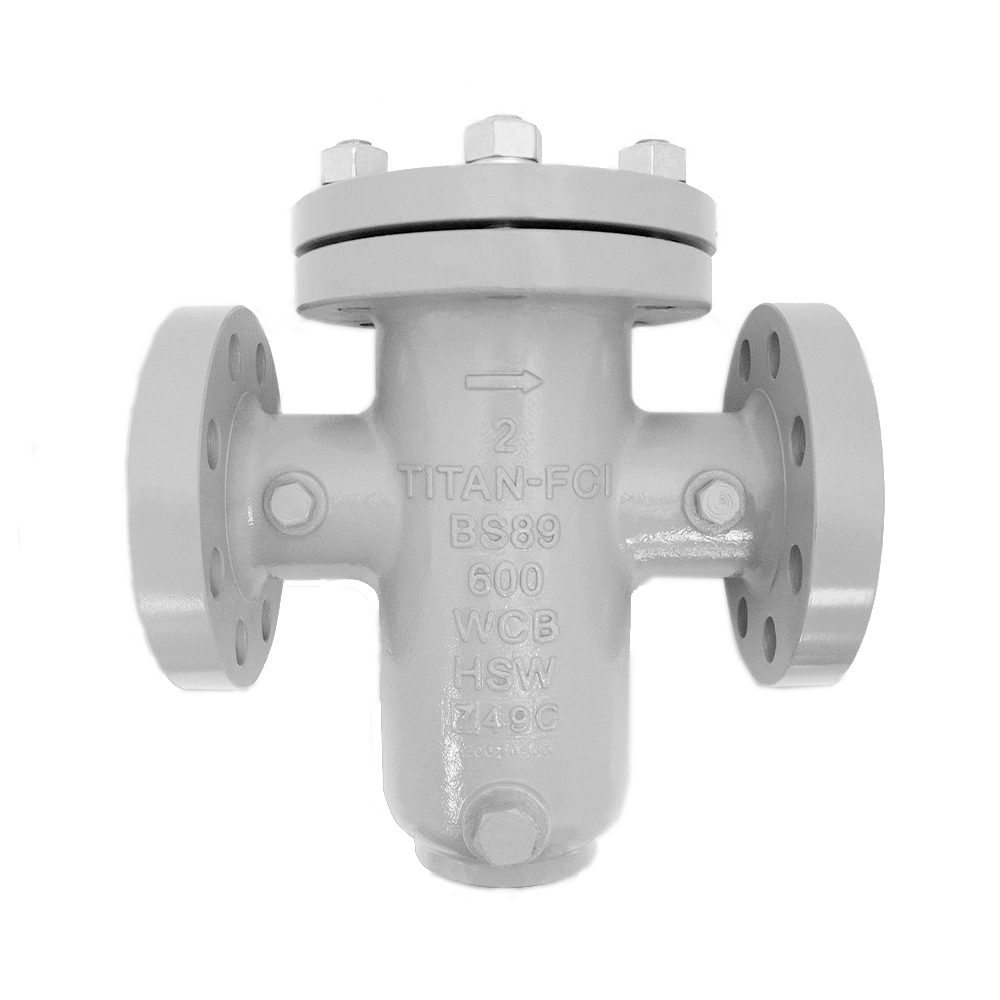

BS89-CS

BS89 CS

  • Body Material: Carbon Steel (A216 Gr. WCB)
  • End Connection: Flanged - RF Ends
  • ASME Rating: Class 600
  • Size Range: 2 in ~ 12 in

  • Carbon Steel - ASTM A216 GR. WCB - CLASS 600
    • 2 ~ 12 - WOG (Non-shock) - 1480 PSI @ 100 °F

General Information

    Product Features
  • Inlet and Outlet Gauge Taps
  • Large Straining Capacity
  • Optional Cover Designs
  • Self-Cleaning Options
  • Epoxy Painted

    Product Indentification
  • Product Code
    • BS89CXXXX - Carbon Steel Unit
  • Replacement Straining Element
    • SE-BS89CXXXX - Carbon Steel Unit
  • Replacement Gasket
    • GK-BS89CXXXX - Carbon Steel Unit
  • Rebuild Kit
    • RK-BS89CXXXX - Carbon Steel Unit

    Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Pressure Drop Calculator
gpm
Cv
Cr
psi
  • Notice - Acceptable Pressure Loss
  • Caution - Excessive Pressure Loss
  • Danger - Critical Pressure Loss
These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View


Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include:  "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
