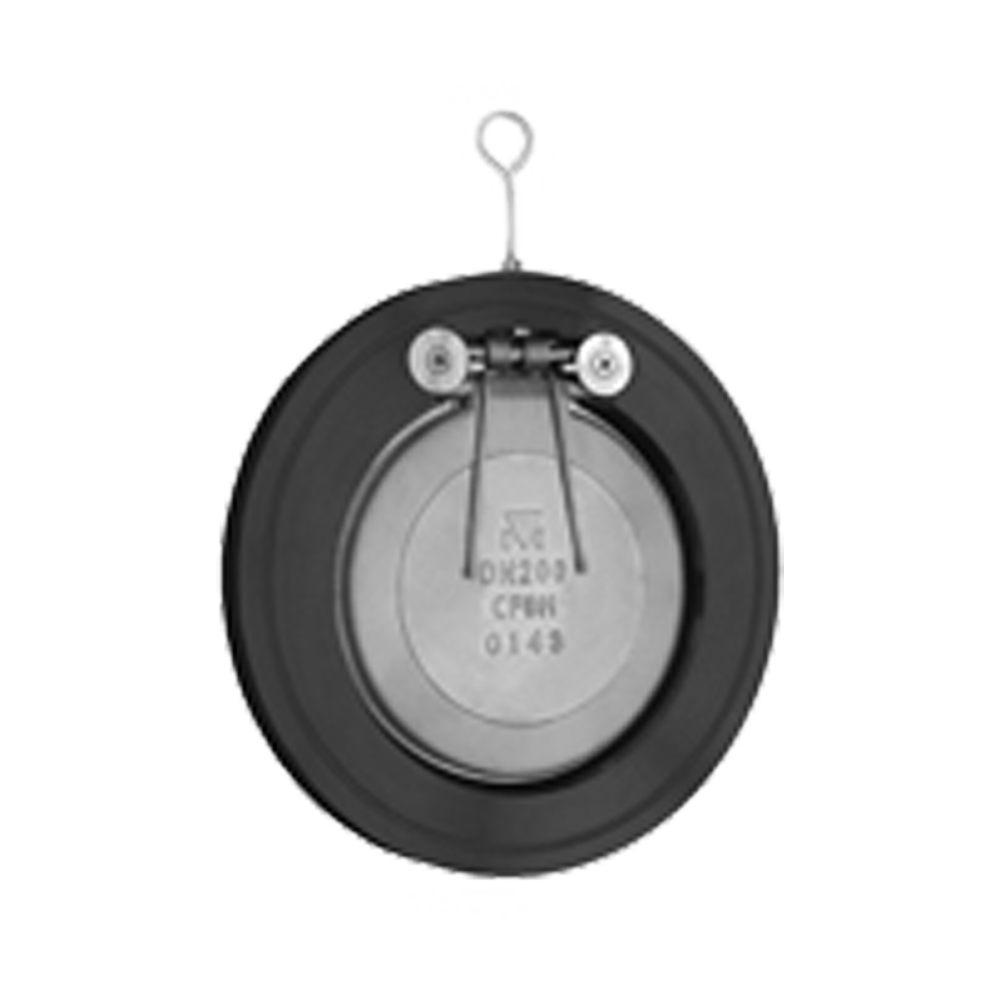

CV12-CS
Valve Specification
- Body Material: Carbon Steel (ASTM A515 Gr. 70)
- End Connection:
- ASME Rating: Class 150
- Size Range: 2 in ~ 24 in
Pressure Rating
- Carbon Steel - ASTM A216 Gr. WCB - Class 150 2 ~ 24 - WOG (Non-shock): 285 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Minimal Head Loss
- Resilient Soft Seats
- Fugitive Emission Design
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV12-CS | CV12-CSB | 2 | CV12C0200 | Carbon Steel | Flanged | Class 150 | 228.00 | |
| CV12-CS | CV12-CSB | 2 | CV12C0250 | Carbon Steel | Flanged | Class 150 | 276.00 | |
| CV12-CS | CV12-CSB | 3 | CV12C0300 | Carbon Steel | Flanged | Class 150 | 303.00 | |
| CV12-CS | CV12-CSB | 4 | CV12C0400 | Carbon Steel | Flanged | Class 150 | 393.00 | |
| CV12-CS | CV12-CSB | 5 | CV12C0500 | Carbon Steel | Flanged | Class 150 | 722.00 | |
| CV12-CS | CV12-CSB | 6 | CV12C0600 | Carbon Steel | Flanged | Class 150 | 768.00 | |
| CV12-CS | CV12-CSB | 8 | CV12C0800 | Carbon Steel | Flanged | Class 150 | 1,151.00 | |
| CV12-CS | CV12-CSB | 10 | CV12C1000 | Carbon Steel | Flanged | Class 150 | 2,002.00 | |
| CV12-CS | CV12-CSB | 12 | CV12C1200 | Carbon Steel | Flanged | Class 150 | 3,158.00 | |
| CV12-CS | CV12-CSB | 14 | CV12C1400 | Carbon Steel | Flanged | Class 150 | 3,632.00 | |
| CV12-CS | CV12-CS | 16 | CV12C1600 | Carbon Steel | Flanged | Class 150 | 6,960.00 | |
| CV12-CS | CV12-CS | 18 | CV12C1800 | Carbon Steel | Flanged | Class 150 | 10,441.00 | |
| CV12-CS | CV12-CS | 20 | CV12C2000 | Carbon Steel | Flanged | Class 150 | 14,076.00 | |
| CV12-CS | CV12-CS | 24 | CV12C2400 | Carbon Steel | Flanged | Class 150 | 20,862.00 | |
| CV12-CS | CV12-CSV | 2 | CV12CSV0200 | Carbon Steel | Flanged | Class 150 | 245.00 | |
| CV12-CS | CV12-CSV | 2 | CV12CSV0250 | Carbon Steel | Flanged | Class 150 | 295.00 | |
| CV12-CS | CV12-CSV | 3 | CV12CSV0300 | Carbon Steel | Flanged | Class 150 | 325.00 | |
| CV12-CS | CV12-CSV | 4 | CV12CSV0400 | Carbon Steel | Flanged | Class 150 | 423.00 | |
| CV12-CS | CV12-CSV | 5 | CV12CSV0500 | Carbon Steel | Flanged | Class 150 | 771.00 | |
| CV12-CS | CV12-CSV | 6 | CV12CSV0600 | Carbon Steel | Flanged | Class 150 | 819.00 | |
| CV12-CS | CV12-CSV | 8 | CV12CSV0800 | Carbon Steel | Flanged | Class 150 | 1,228.00 | |
| CV12-CS | CV12-CSV | 12 | CV12CSV1200 | Carbon Steel | Flanged | Class 150 | 3,372.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
