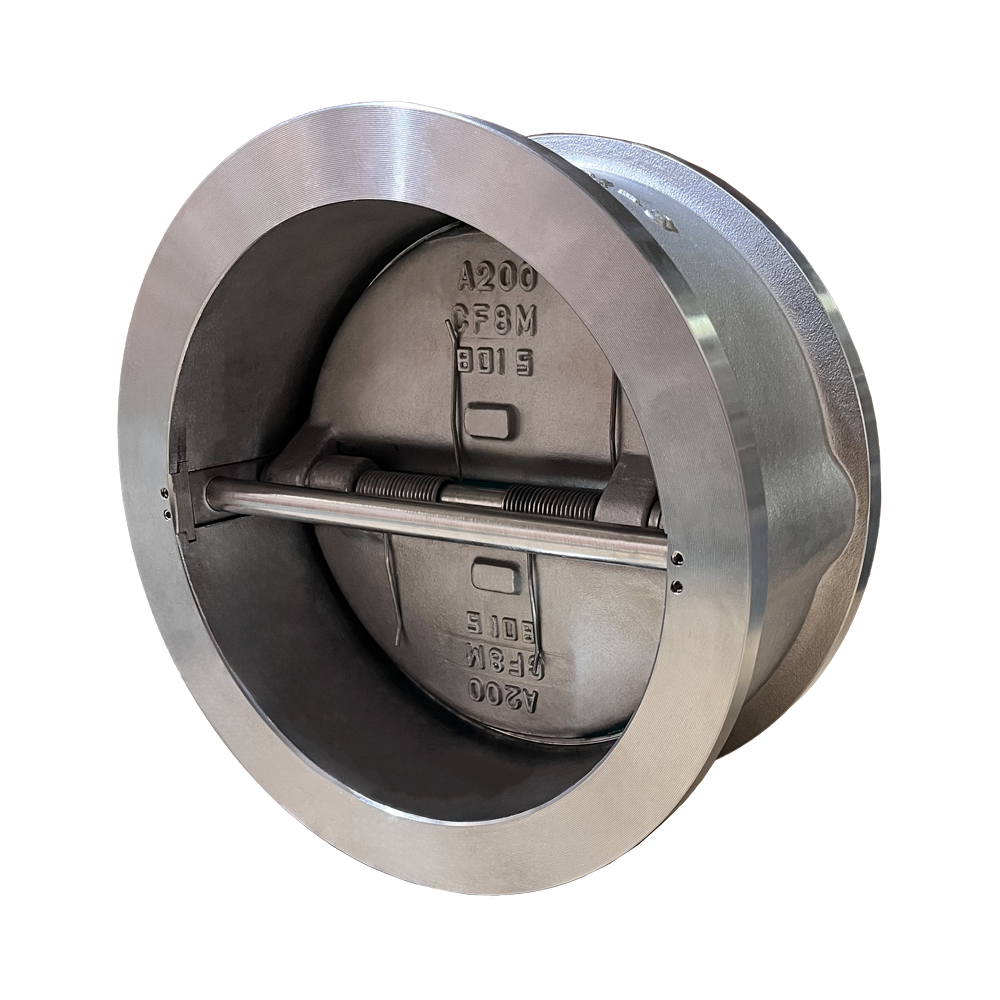

CV42-SS
Valve Specification
- Body Material: Stainless Steel (ASTM A351 Gr. CF8M)
- End Connection:
- ASME Rating: Class 150
- Size Range: 2 in ~ 24 in
Pressure Rating
- Stainless Steel - ASTM A351 Gr. CF8M - Class 150 2 ~ 24 - WOG (Non-shock): 275 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Cost Efficient Design
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Designed For Long Service Life
- Fugitive Emission Design
- Resilient and Metal Seats
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV42-SS | CV42-SSM | 2 | CV42SSM0200 | Stainless Steel | Wafer | Class 150 | 1,236.00 | |
| CV42-SS | CV42-SSM | 2 | CV42SSM0250 | Stainless Steel | Wafer | Class 150 | 1,584.00 | |
| CV42-SS | CV42-SSM | 3 | CV42SSM0300 | Stainless Steel | Wafer | Class 150 | 2,056.00 | |
| CV42-SS | CV42-SSM | 4 | CV42SSM0400 | Stainless Steel | Wafer | Class 150 | 2,741.00 | |
| CV42-SS | CV42-SSM | 5 | CV42SSM0500 | Stainless Steel | Wafer | Class 150 | 4,309.00 | |
| CV42-SS | CV42-SSM | 6 | CV42SSM0600 | Stainless Steel | Wafer | Class 150 | 5,661.00 | |
| CV42-SS | CV42-SSM | 8 | CV42SSM0800 | Stainless Steel | Wafer | Class 150 | 9,225.00 | |
| CV42-SS | CV42-SSM | 10 | CV42SSM1000 | Stainless Steel | Wafer | Class 150 | 13,301.00 | |
| CV42-SS | CV42-SSM | 12 | CV42SSM1200 | Stainless Steel | Wafer | Class 150 | 22,037.00 | |
| CV42-SS | CV42-SSM | 14 | CV42SSM1400 | Stainless Steel | Wafer | Class 150 | 27,936.00 | |
| CV42-SS | CV42-SSM | 16 | CV42SSM1600 | Stainless Steel | Wafer | Class 150 | 36,929.00 | |
| CV42-SS | CV42-SSM | 18 | CV42SSM1800 | Stainless Steel | Wafer | Class 150 | 42,825.00 | |
| CV42-SS | CV42-SSM | 20 | CV42SSM2000 | Stainless Steel | Wafer | Class 150 | 54,903.00 | |
| CV42-SS | CV42-SSM | 24 | CV42SSM2400 | Stainless Steel | Wafer | Class 150 | 77,300.00 | |
| CV42-SS | CV42-SSV | 2 | CV42SSV0200 | Stainless Steel | Wafer | Class 150 | 1,293.00 | |
| CV42-SS | CV42-SSV | 2 | CV42SSV0250 | Stainless Steel | Wafer | Class 150 | 1,682.00 | |
| CV42-SS | CV42-SSV | 3 | CV42SSV0300 | Stainless Steel | Wafer | Class 150 | 2,126.00 | |
| CV42-SS | CV42-SSV | 4 | CV42SSV0400 | Stainless Steel | Wafer | Class 150 | 2,902.00 | |
| CV42-SS | CV42-SSV | 5 | CV42SSV0500 | Stainless Steel | Wafer | Class 150 | 4,500.00 | |
| CV42-SS | CV42-SSV | 6 | CV42SSV0600 | Stainless Steel | Wafer | Class 150 | 6,035.00 | |
| CV42-SS | CV42-SSV | 8 | CV42SSV0800 | Stainless Steel | Wafer | Class 150 | 9,006.00 | |
| CV42-SS | CV42-SSV | 10 | CV42SSV1000 | Stainless Steel | Wafer | Class 150 | 12,960.00 | |
| CV42-SS | CV42-SSV | 12 | CV42SSV1200 | Stainless Steel | Wafer | Class 150 | 21,686.00 | |
| CV42-SS | CV42-SSV | 14 | CV42SSV1400 | Stainless Steel | Wafer | Class 150 | 27,319.00 | |
| CV42-SS | CV42-SSV | 16 | CV42SSV1600 | Stainless Steel | Wafer | Class 150 | 37,499.00 | |
| CV42-SS | CV42-SSV | 18 | CV42SSV1800 | Stainless Steel | Wafer | Class 150 | 41,737.00 | |
| CV42-SS | CV42-SSV | 20 | CV42SSV2000 | Stainless Steel | Wafer | Class 150 | 54,463.00 | |
| CV42-SS | CV42-SSV | 24 | CV42SSV2400 | Stainless Steel | Wafer | Class 150 | 88,835.00 | |
| CV42-SS | CV42-SSV | 30 | CV42SSV3000 | Stainless Steel | Wafer | Class 150 | 133,250.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
