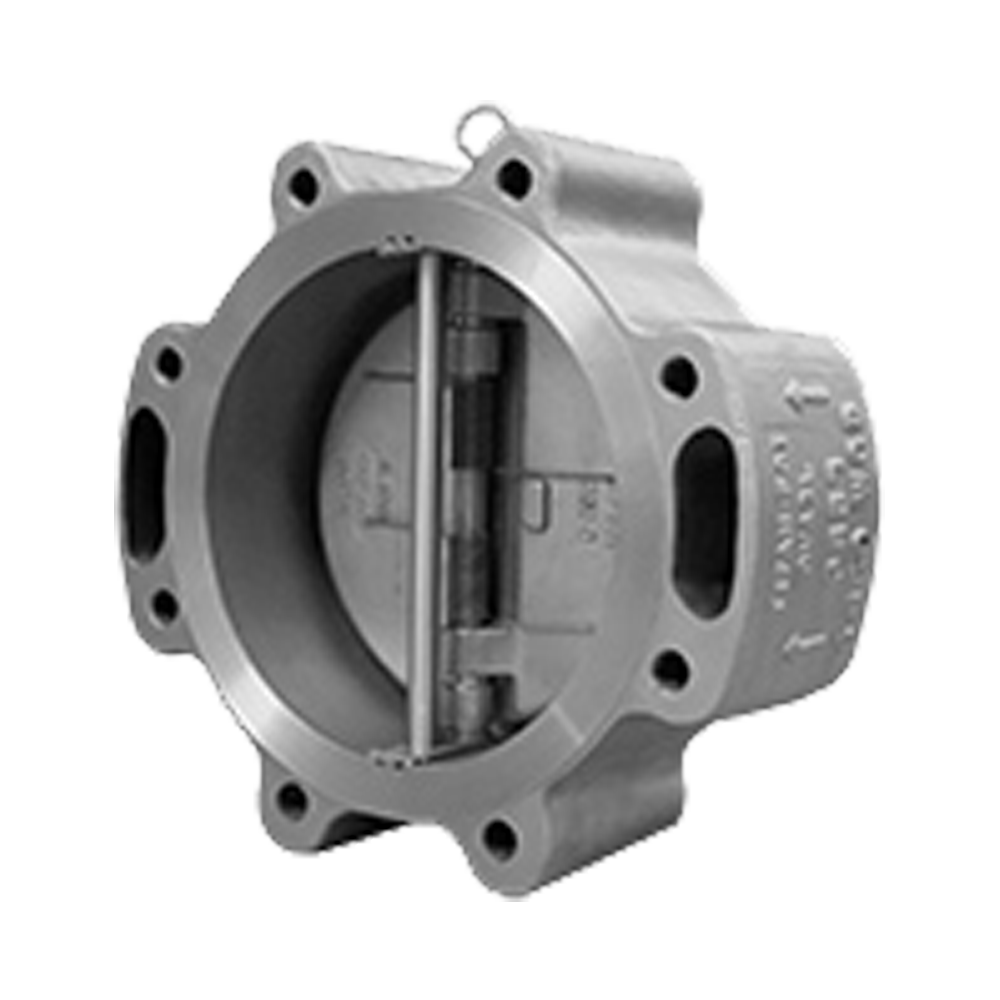

CV42L-CS
Valve Specification
- Body Material: Carbon Steel (ASTM A216 Gr. WCB)
- End Connection:
- ASME Rating: Class 150
- Size Range: 2 in ~ 24 in
Pressure Rating
- Carbon Steel - ASTM A216 Gr. WCB - Class 150 2 ~ 24 - WOG (Non-shock): 285 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Designed For Long Service Life
- Fugitive Emission Design
- Resilient and Metal Seats
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV42L-CS | CV42L-CSB | 2 | CV42LCSB0200 | Carbon Steel | Lug | Class 150 | 1,894.00 | |
| CV42L-CS | CV42L-CSB | 2 | CV42LCSB0250 | Carbon Steel | Lug | Class 150 | 2,365.00 | |
| CV42L-CS | CV42L-CSB | 3 | CV42LCSB0300 | Carbon Steel | Lug | Class 150 | 2,550.00 | |
| CV42L-CS | CV42L-CSB | 4 | CV42LCSB0400 | Carbon Steel | Lug | Class 150 | 3,248.00 | |
| CV42L-CS | CV42L-CSB | 5 | CV42LCSB0500 | Carbon Steel | Lug | Class 150 | 4,608.00 | |
| CV42L-CS | CV42L-CSB | 6 | CV42LCSB0600 | Carbon Steel | Lug | Class 150 | 7,018.00 | |
| CV42L-CS | CV42L-CSB | 8 | CV42LCSB0800 | Carbon Steel | Lug | Class 150 | 8,682.00 | |
| CV42L-CS | CV42L-CSB | 10 | CV42LCSB1000 | Carbon Steel | Lug | Class 150 | 12,686.00 | |
| CV42L-CS | CV42L-CSB | 12 | CV42LCSB1200 | Carbon Steel | Lug | Class 150 | 16,947.00 | |
| CV42L-CS | CV42L-CSB | 14 | CV42LCSB1400 | Carbon Steel | Lug | Class 150 | 23,110.00 | |
| CV42L-CS | CV42L-CSB | 16 | CV42LCSB1600 | Carbon Steel | Lug | Class 150 | 31,004.00 | |
| CV42L-CS | CV42L-CSB | 18 | CV42LCSB1800 | Carbon Steel | Lug | Class 150 | 36,990.00 | |
| CV42L-CS | CV42L-CSB | 20 | CV42LCSB2000 | Carbon Steel | Lug | Class 150 | 49,342.00 | |
| CV42L-CS | CV42L-CSB | 24 | CV42LCSB2400 | Carbon Steel | Lug | Class 150 | 77,983.00 | |
| CV42L-CS | CV42L-CSM | 2 | CV42LCSM0200 | Carbon Steel | Lug | Class 150 | 1,726.00 | |
| CV42L-CS | CV42L-CSM | 2 | CV42LCSM0250 | Carbon Steel | Lug | Class 150 | 2,150.00 | |
| CV42L-CS | CV42L-CSM | 3 | CV42LCSM0300 | Carbon Steel | Lug | Class 150 | 2,328.00 | |
| CV42L-CS | CV42L-CSM | 4 | CV42LCSM0400 | Carbon Steel | Lug | Class 150 | 2,944.00 | |
| CV42L-CS | CV42L-CSM | 5 | CV42LCSM0500 | Carbon Steel | Lug | Class 150 | 4,183.00 | |
| CV42L-CS | CV42L-CSM | 6 | CV42LCSM0600 | Carbon Steel | Lug | Class 150 | 6,378.00 | |
| CV42L-CS | CV42L-CSM | 8 | CV42LCSM0800 | Carbon Steel | Lug | Class 150 | 7,873.00 | |
| CV42L-CS | CV42L-CSM | 10 | CV42LCSM1000 | Carbon Steel | Lug | Class 150 | 11,581.00 | |
| CV42L-CS | CV42L-CSM | 12 | CV42LCSM1200 | Carbon Steel | Lug | Class 150 | 15,451.00 | |
| CV42L-CS | CV42L-CSM | 14 | CV42LCSM1400 | Carbon Steel | Lug | Class 150 | 21,000.00 | |
| CV42L-CS | CV42L-CSM | 16 | CV42LCSM1600 | Carbon Steel | Lug | Class 150 | 28,157.00 | |
| CV42L-CS | CV42L-CSM | 18 | CV42LCSM1800 | Carbon Steel | Lug | Class 150 | 33,724.00 | |
| CV42L-CS | CV42L-CSM | 20 | CV42LCSM2000 | Carbon Steel | Lug | Class 150 | 44,868.00 | |
| CV42L-CS | CV42L-CSM | 24 | CV42LCSM2400 | Carbon Steel | Lug | Class 150 | 70,925.00 | |
| CV42L-CS | CV42L-CSV | 2 | CV42LCSV0200 | Carbon Steel | Lug | Class 150 | 1,894.00 | |
| CV42L-CS | CV42L-CSV | 2 | CV42LCSV0250 | Carbon Steel | Lug | Class 150 | 2,365.00 | |
| CV42L-CS | CV42L-CSV | 3 | CV42LCSV0300 | Carbon Steel | Lug | Class 150 | 2,550.00 | |
| CV42L-CS | CV42L-CSV | 4 | CV42LCSV0400 | Carbon Steel | Lug | Class 150 | 3,248.00 | |
| CV42L-CS | CV42L-CSV | 5 | CV42LCSV0500 | Carbon Steel | Lug | Class 150 | 4,608.00 | |
| CV42L-CS | CV42L-CSV | 6 | CV42LCSV0600 | Carbon Steel | Lug | Class 150 | 7,018.00 | |
| CV42L-CS | CV42L-CSV | 8 | CV42LCSV0800 | Carbon Steel | Lug | Class 150 | 8,682.00 | |
| CV42L-CS | CV42L-CSV | 10 | CV42LCSV1000 | Carbon Steel | Lug | Class 150 | 12,686.00 | |
| CV42L-CS | CV42L-CSV | 12 | CV42LCSV1200 | Carbon Steel | Lug | Class 150 | 16,947.00 | |
| CV42L-CS | CV42L-CSV | 14 | CV42LCSV1400 | Carbon Steel | Lug | Class 150 | 23,110.00 | |
| CV42L-CS | CV42L-CSV | 16 | CV42LCSV1600 | Carbon Steel | Lug | Class 150 | 31,004.00 | |
| CV42L-CS | CV42L-CSV | 18 | CV42LCSV1800 | Carbon Steel | Lug | Class 150 | 36,990.00 | |
| CV42L-CS | CV42L-CSV | 20 | CV42LCSV2000 | Carbon Steel | Lug | Class 150 | 49,342.00 | |
| CV42L-CS | CV42L-CSV | 24 | CV42LCSV2400 | Carbon Steel | Lug | Class 150 | 77,983.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
