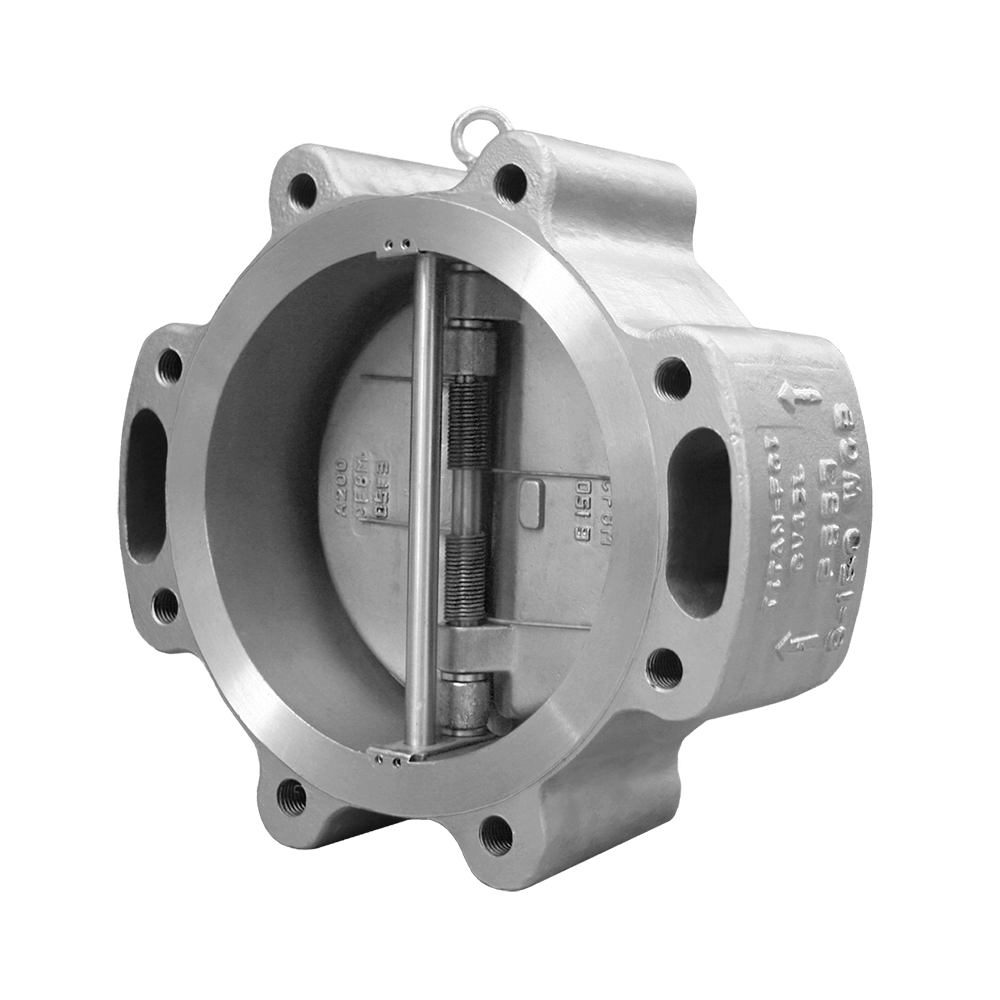

CV42L-SS
Valve Specification
- Body Material: Stainless Steel (ASTM A351 Gr. CF8M)
- End Connection:
- ASME Rating: Class 150
- Size Range: 2 in ~ 24 in
Pressure Rating
- Stainless Steel - ASTM A351 Gr. CF8M - Class 150 2 ~ 24 - WOG (Non-shock): 275 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Designed For Long Service Life
- Fugitive Emission Design
- Resilient and Metal Seats
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV42L-SS | CV42L-SSM | 2 | CV42LSSM0200 | Stainless Steel | Lug | Class 150 | 3,314.00 | |
| CV42L-SS | CV42L-SSM | 2 | CV42LSSM0250 | Stainless Steel | Lug | Class 150 | 3,726.00 | |
| CV42L-SS | CV42L-SSM | 3 | CV42LSSM0300 | Stainless Steel | Lug | Class 150 | 4,878.00 | |
| CV42L-SS | CV42L-SSM | 4 | CV42LSSM0400 | Stainless Steel | Lug | Class 150 | 6,277.00 | |
| CV42L-SS | CV42L-SSM | 5 | CV42LSSM0500 | Stainless Steel | Lug | Class 150 | 8,369.00 | |
| CV42L-SS | CV42L-SSM | 6 | CV42LSSM0600 | Stainless Steel | Lug | Class 150 | 11,086.00 | |
| CV42L-SS | CV42L-SSM | 8 | CV42LSSM0800 | Stainless Steel | Lug | Class 150 | 17,806.00 | |
| CV42L-SS | CV42L-SSM | 10 | CV42LSSM1000 | Stainless Steel | Lug | Class 150 | 20,645.00 | |
| CV42L-SS | CV42L-SSM | 12 | CV42LSSM1200 | Stainless Steel | Lug | Class 150 | 37,505.00 | |
| CV42L-SS | CV42L-SSM | 14 | CV42LSSM1400 | Stainless Steel | Lug | Class 150 | 48,348.00 | |
| CV42L-SS | CV42L-SSM | 16 | CV42LSSM1600 | Stainless Steel | Lug | Class 150 | 59,495.00 | |
| CV42L-SS | CV42L-SSM | 18 | CV42LSSM1800 | Stainless Steel | Lug | Class 150 | 72,155.00 | |
| CV42L-SS | CV42L-SSV | 2 | CV42LSSV0200 | Stainless Steel | Lug | Class 150 | 3,645.00 | |
| CV42L-SS | CV42L-SSV | 2 | CV42LSSV0250 | Stainless Steel | Lug | Class 150 | 4,098.00 | |
| CV42L-SS | CV42L-SSV | 3 | CV42LSSV0300 | Stainless Steel | Lug | Class 150 | 5,364.00 | |
| CV42L-SS | CV42L-SSV | 4 | CV42LSSV0400 | Stainless Steel | Lug | Class 150 | 6,906.00 | |
| CV42L-SS | CV42L-SSV | 5 | CV42LSSV0500 | Stainless Steel | Lug | Class 150 | 10,084.00 | |
| CV42L-SS | CV42L-SSV | 6 | CV42LSSV0600 | Stainless Steel | Lug | Class 150 | 12,220.00 | |
| CV42L-SS | CV42L-SSV | 8 | CV42LSSV0800 | Stainless Steel | Lug | Class 150 | 19,805.00 | |
| CV42L-SS | CV42L-SSV | 10 | CV42LSSV1000 | Stainless Steel | Lug | Class 150 | 22,714.00 | |
| CV42L-SS | CV42L-SSV | 12 | CV42LSSV1200 | Stainless Steel | Lug | Class 150 | 41,256.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
