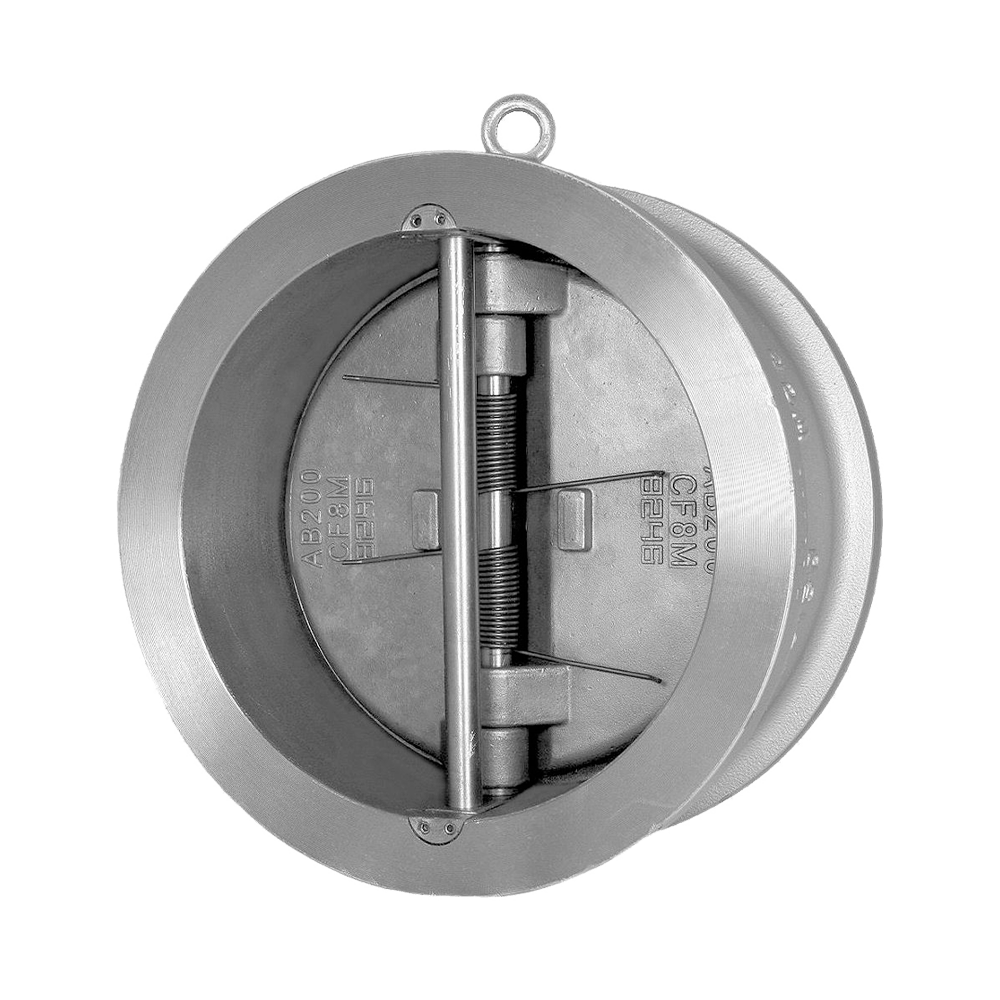

CV44-SS

Valve Specification
- Body Material: Stainless Steel (ASTM A351 Gr. CF8M)
- End Connection:
- ASME Rating: Class 300
- Size Range: 2 in ~ 24 in
Pressure Rating
- Stainless Steel - ASTM A351 Gr. CF8MC - Class 300 2 ~ 24 - WOG (Non-shock): 720 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Cost Efficient Design
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Designed For Long Service Life
- Fugitive Emission Design
- Resilient and Metal Seats
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
---|---|---|---|---|---|---|---|---|
CV44-SS | CV44-SSM | 2 | CV44SSM0200 | Stainless Steel | Wafer | Class 300 | 1,383.00 | |
CV44-SS | CV44-SSM | 2 | CV44SSM0250 | Stainless Steel | Wafer | Class 300 | 1,667.00 | |
CV44-SS | CV44-SSM | 3 | CV44SSM0300 | Stainless Steel | Wafer | Class 300 | 2,042.00 | |
CV44-SS | CV44-SSM | 4 | CV44SSM0400 | Stainless Steel | Wafer | Class 300 | 2,698.00 | |
CV44-SS | CV44-SSM | 5 | CV44SSM0500 | Stainless Steel | Wafer | Class 300 | 4,713.00 | |
CV44-SS | CV44-SSM | 6 | CV44SSM0600 | Stainless Steel | Wafer | Class 300 | 6,228.00 | |
CV44-SS | CV44-SSM | 8 | CV44SSM0800 | Stainless Steel | Wafer | Class 300 | 10,930.00 | |
CV44-SS | CV44-SSM | 10 | CV44SSM1000 | Stainless Steel | Wafer | Class 300 | 15,751.00 | |
CV44-SS | CV44-SSM | 12 | CV44SSM1200 | Stainless Steel | Wafer | Class 300 | 27,181.00 | |
CV44-SS | CV44-SSM | 14 | CV44SSM1400 | Stainless Steel | Wafer | Class 300 | 38,798.00 | |
CV44-SS | CV44-SSM | 16 | CV44SSM1600 | Stainless Steel | Wafer | Class 300 | 49,124.00 | |
CV44-SS | CV44-SSM | 18 | CV44SSM1800 | Stainless Steel | Wafer | Class 300 | 66,732.00 | |
CV44-SS | CV44-SSM | 20 | CV44SSM2000 | Stainless Steel | Wafer | Class 300 | 84,172.00 | |
CV44-SS | CV44-SSM | 24 | CV44SSM2400 | Stainless Steel | Wafer | Class 300 | 132,830.00 | |
CV44-SS | CV44-SSM | 30 | CV44SSM3000 | Stainless Steel | Wafer | Class 300 | 241,442.00 | |
CV44-SS | CV44-SSM | 36 | CV44SSM3600 | Stainless Steel | Wafer | Class 300 | 389,686.00 | |
CV44-SS | CV44-SSV | 2 | CV44SSV0200 | Stainless Steel | Wafer | Class 300 | 1,466.00 | |
CV44-SS | CV44-SSV | 2 | CV44SSV0250 | Stainless Steel | Wafer | Class 300 | 1,789.00 | |
CV44-SS | CV44-SSV | 3 | CV44SSV0300 | Stainless Steel | Wafer | Class 300 | 2,235.00 | |
CV44-SS | CV44-SSV | 4 | CV44SSV0400 | Stainless Steel | Wafer | Class 300 | 2,803.00 | |
CV44-SS | CV44-SSV | 5 | CV44SSV0500 | Stainless Steel | Wafer | Class 300 | 4,796.00 | |
CV44-SS | CV44-SSV | 6 | CV44SSV0600 | Stainless Steel | Wafer | Class 300 | 6,000.00 | |
CV44-SS | CV44-SSV | 8 | CV44SSV0800 | Stainless Steel | Wafer | Class 300 | 11,016.00 | |
CV44-SS | CV44-SSV | 10 | CV44SSV1000 | Stainless Steel | Wafer | Class 300 | 16,109.00 | |
CV44-SS | CV44-SSV | 12 | CV44SSV1200 | Stainless Steel | Wafer | Class 300 | 27,304.00 | |
CV44-SS | CV44-SSV | 14 | CV44SSV1400 | Stainless Steel | Wafer | Class 300 | 40,262.00 | |
CV44-SS | CV44-SSV | 16 | CV44SSV1600 | Stainless Steel | Wafer | Class 300 | 49,893.00 | |
CV44-SS | CV44-SSV | 18 | CV44SSV1800 | Stainless Steel | Wafer | Class 300 | 68,091.00 | |
CV44-SS | CV44-SSV | 20 | CV44SSV2000 | Stainless Steel | Wafer | Class 300 | 87,839.00 | |
CV44-SS | CV44-SSV | 24 | CV44SSV2400 | Stainless Steel | Wafer | Class 300 | 134,891.00 | |
CV44-SS | CV44-SSV | 30 | CV44SSV3000 | Stainless Steel | Wafer | Class 300 | 262,795.00 | |
CV44-SS | CV44-SSV | 36 | CV44SSV3600 | Stainless Steel | Wafer | Class 300 | 407,562.00 | |
Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
