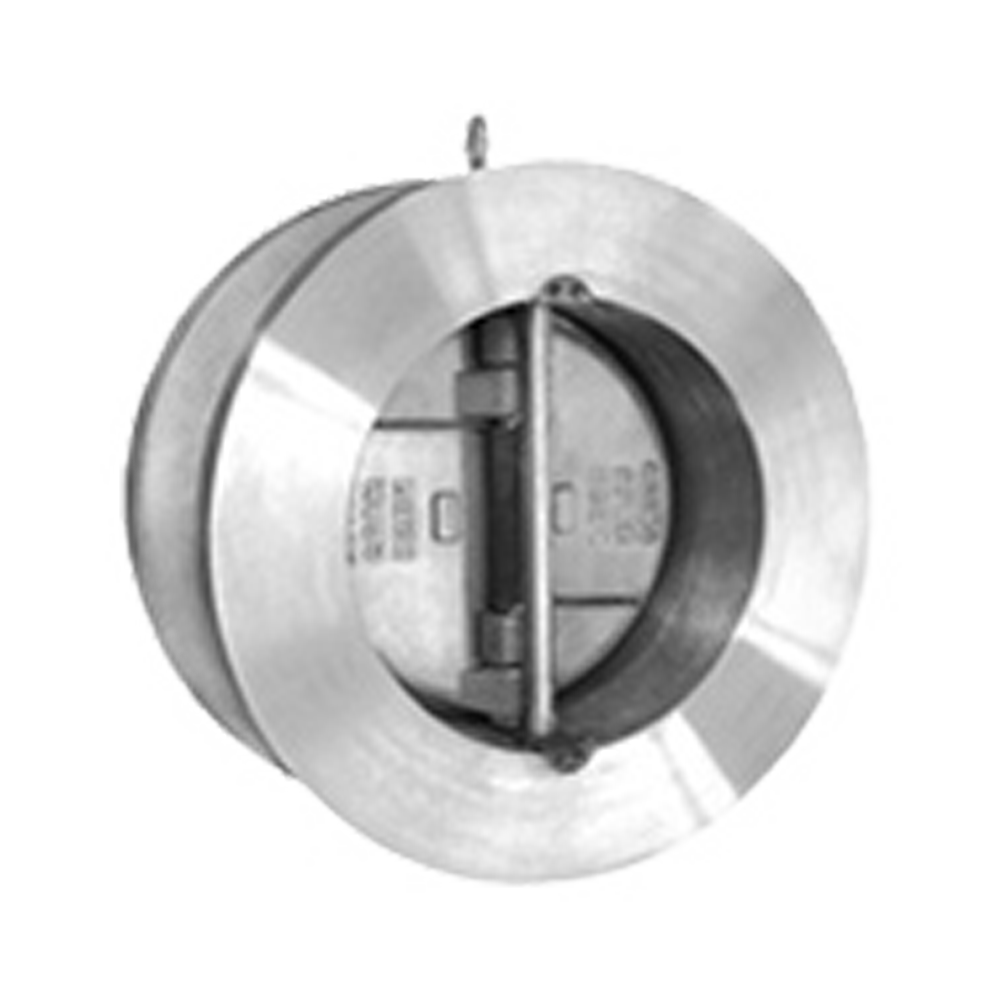

CV46-SS
Valve Specification
- Body Material: Stainless Steel (ASTM A351 Gr. CF8M)
- End Connection:
- ASME Rating: Class 600
- Size Range: 2 in ~ 24 in
Pressure Rating
- Stainless Steel - ASTM A351 Gr. CF8M - Class 600 2 ~ 24 - WOG (Non-shock): 1440 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Cost Efficient Design
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Designed For Long Service Life
- Fugitive Emission Design
- Resilient and Metal Seats
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV46-SS | CV46-SSM | 2 | CV46SSM0200 | Stainless Steel | Wafer | Class 600 | 1,734.00 | |
| CV46-SS | CV46-SSM | 2 | CV46SSM0250 | Stainless Steel | Wafer | Class 600 | 2,236.00 | |
| CV46-SS | CV46-SSM | 3 | CV46SSM0300 | Stainless Steel | Wafer | Class 600 | 2,582.00 | |
| CV46-SS | CV46-SSM | 4 | CV46SSM0400 | Stainless Steel | Wafer | Class 600 | 4,666.00 | |
| CV46-SS | CV46-SSM | 5 | CV46SSM0500 | Stainless Steel | Wafer | Class 600 | 6,485.00 | |
| CV46-SS | CV46-SSM | 6 | CV46SSM0600 | Stainless Steel | Wafer | Class 600 | 10,798.00 | |
| CV46-SS | CV46-SSM | 8 | CV46SSM0800 | Stainless Steel | Wafer | Class 600 | 15,325.00 | |
| CV46-SS | CV46-SSM | 10 | CV46SSM1000 | Stainless Steel | Wafer | Class 600 | 25,886.00 | |
| CV46-SS | CV46-SSM | 12 | CV46SSM1200 | Stainless Steel | Wafer | Class 600 | 35,792.00 | |
| CV46-SS | CV46-SSM | 14 | CV46SSM1400 | Stainless Steel | Wafer | Class 600 | 51,286.00 | |
| CV46-SS | CV46-SSM | 16 | CV46SSM1600 | Stainless Steel | Wafer | Class 600 | 71,835.00 | |
| CV46-SS | CV46-SSM | 18 | CV46SSM1800 | Stainless Steel | Wafer | Class 600 | 99,656.00 | |
| CV46-SS | CV46-SSV | 2 | CV46SSV0200 | Stainless Steel | Wafer | Class 600 | 1,908.00 | |
| CV46-SS | CV46-SSV | 2 | CV46SSV0250 | Stainless Steel | Wafer | Class 600 | 2,464.00 | |
| CV46-SS | CV46-SSV | 3 | CV46SSV0300 | Stainless Steel | Wafer | Class 600 | 2,839.00 | |
| CV46-SS | CV46-SSV | 4 | CV46SSV0400 | Stainless Steel | Wafer | Class 600 | 5,135.00 | |
| CV46-SS | CV46-SSV | 5 | CV46SSV0500 | Stainless Steel | Wafer | Class 600 | 7,135.00 | |
| CV46-SS | CV46-SSV | 6 | CV46SSV0600 | Stainless Steel | Wafer | Class 600 | 11,880.00 | |
| CV46-SS | CV46-SSV | 8 | CV46SSV0800 | Stainless Steel | Wafer | Class 600 | 16,857.00 | |
| CV46-SS | CV46-SSV | 10 | CV46SSV1000 | Stainless Steel | Wafer | Class 600 | 29,301.00 | |
| CV46-SS | CV46-SSV | 12 | CV46SSV1200 | Stainless Steel | Wafer | Class 600 | 40,920.00 | |
| CV46-SS | CV46-SSV | 14 | CV46SSV1400 | Stainless Steel | Wafer | Class 600 | 61,831.00 | |
| CV46-SS | CV46-SSV | 16 | CV46SSV1600 | Stainless Steel | Wafer | Class 600 | 83,653.00 | |
| CV46-SS | CV46-SSV | 18 | CV46SSV1800 | Stainless Steel | Wafer | Class 600 | 112,751.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
