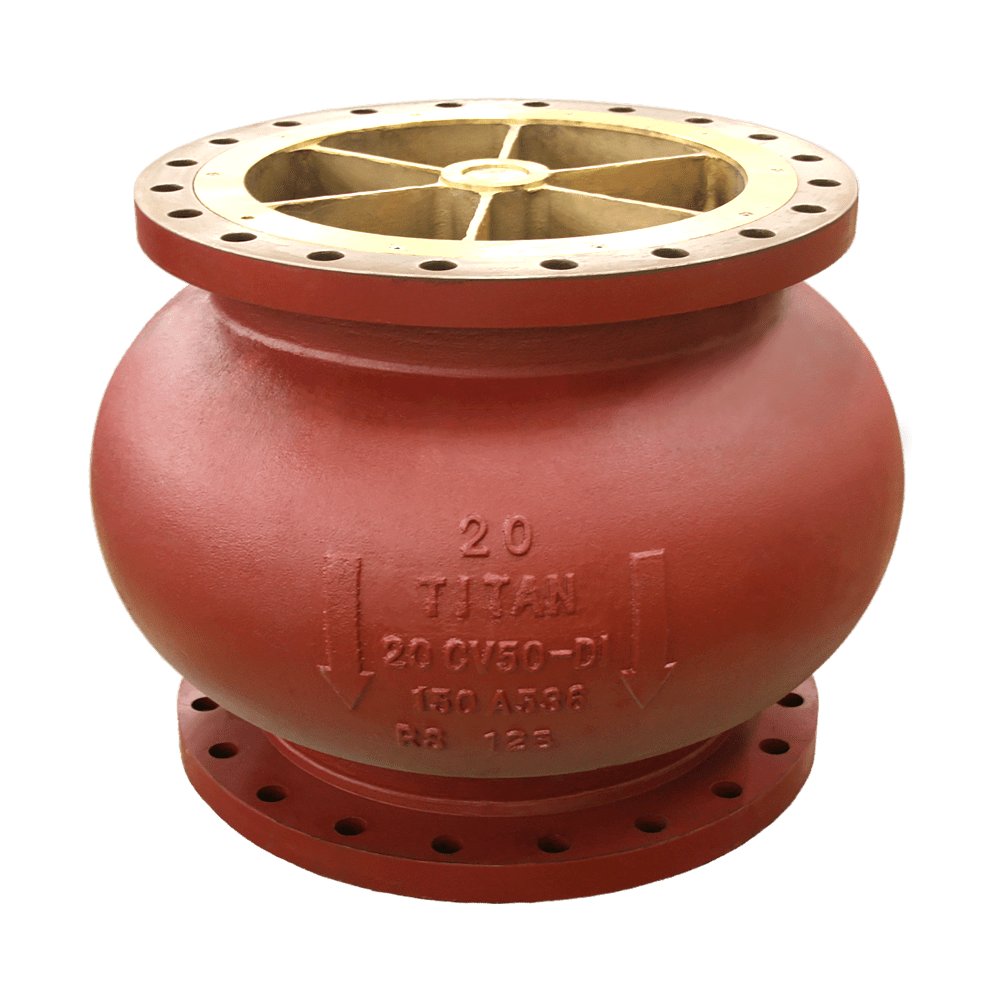

CV50-DI
Valve Specification
- Body Material: Ductile Iron (ASTM A536)
- End Connection:
- ASME Rating: Class 150
- Size Range: 2 in ~ 24 in
Pressure Rating
- Ductile Iron - ASTM A395 - Class 150 2 ~ 24 - WOG (Non-Shock): 250 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
General Information
-
Product Features
- Designed For Long Service Life
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Metal-To-Metal Seats
- FM Approved
-
Product Indentification
- Product Code CV50DBMXXXX - Ductile Iron Unit (Bronze Disc, Aluminum Bronze Seat)
CV50DSMXXXX - Ductile Iron Unit (Stainless Steel Disc, Stainless Steel Seat)
Note: 'XXXX' designates the size of the part
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV50-DI | CV50-DBM | 2 | CV50DBM0200 | Ductile Iron | Flanged | Class 150 | 755.00 | |
| CV50-DI | CV50-DBM | 2 | CV50DBM0250 | Ductile Iron | Flanged | Class 150 | 1,018.00 | |
| CV50-DI | CV50-DBM | 3 | CV50DBM0300 | Ductile Iron | Flanged | Class 150 | 1,251.00 | |
| CV50-DI | CV50-DBM | 4 | CV50DBM0400 | Ductile Iron | Flanged | Class 150 | 1,856.00 | |
| CV50-DI | CV50-DBM | 5 | CV50DBM0500 | Ductile Iron | Flanged | Class 150 | 2,902.00 | |
| CV50-DI | CV50-DBM | 6 | CV50DBM0600 | Ductile Iron | Flanged | Class 150 | 3,579.00 | |
| CV50-DI | CV50-DBM | 8 | CV50DBM0800 | Ductile Iron | Flanged | Class 150 | 5,639.00 | |
| CV50-DI | CV50-DBM | 10 | CV50DBM1000 | Ductile Iron | Flanged | Class 150 | 8,942.00 | |
| CV50-DI | CV50-DBM | 12 | CV50DBM1200 | Ductile Iron | Flanged | Class 150 | 12,848.00 | |
| CV50-DI | CV50-DBM | 14 | CV50DBM1400 | Ductile Iron | Flanged | Class 150 | 19,089.00 | |
| CV50-DI | CV50-DBM | 16 | CV50DBM1600 | Ductile Iron | Flanged | Class 150 | 25,449.00 | |
| CV50-DI | CV50-DBM | 18 | CV50DBM1800 | Ductile Iron | Flanged | Class 150 | 30,604.00 | |
| CV50-DI | CV50-DBM | 20 | CV50DBM2000 | Ductile Iron | Flanged | Class 150 | 41,073.00 | |
| CV50-DI | CV50-DBM | 24 | CV50DBM2400 | Ductile Iron | Flanged | Class 150 | 55,727.00 | |
| CV50-DI | CV50-DBM | 30 | CV50DBM3000 | Ductile Iron | Flanged | Class 150 | 90,193.00 | |
| CV50-DI | CV50-DSM | 2 | CV50DSM0200 | Ductile Iron | Flanged | Class 150 | 961.00 | |
| CV50-DI | CV50-DSM | 2 | CV50DSM0250 | Ductile Iron | Flanged | Class 150 | 1,147.00 | |
| CV50-DI | CV50-DSM | 3 | CV50DSM0300 | Ductile Iron | Flanged | Class 150 | 1,367.00 | |
| CV50-DI | CV50-DSM | 4 | CV50DSM0400 | Ductile Iron | Flanged | Class 150 | 1,949.00 | |
| CV50-DI | CV50-DSM | 5 | CV50DSM0500 | Ductile Iron | Flanged | Class 150 | 3,223.00 | |
| CV50-DI | CV50-DSM | 6 | CV50DSM0600 | Ductile Iron | Flanged | Class 150 | 3,869.00 | |
| CV50-DI | CV50-DSM | 8 | CV50DSM0800 | Ductile Iron | Flanged | Class 150 | 5,929.00 | |
| CV50-DI | CV50-DSM | 10 | CV50DSM1000 | Ductile Iron | Flanged | Class 150 | 9,344.00 | |
| CV50-DI | CV50-DSM | 12 | CV50DSM1200 | Ductile Iron | Flanged | Class 150 | 13,186.00 | |
| CV50-DI | CV50-DSM | 14 | CV50DSM1400 | Ductile Iron | Flanged | Class 150 | 19,732.00 | |
| CV50-DI | CV50-DSM | 16 | CV50DSM1600 | Ductile Iron | Flanged | Class 150 | 27,061.00 | |
| CV50-DI | CV50-DSM | 18 | CV50DSM1800 | Ductile Iron | Flanged | Class 150 | 32,215.00 | |
| CV50-DI | CV50-DSM | 20 | CV50DSM2000 | Ductile Iron | Flanged | Class 150 | 42,361.00 | |
| CV50-DI | CV50-DSM | 24 | CV50DSM2400 | Ductile Iron | Flanged | Class 150 | 57,984.00 | |
| CV50-DI | CV50-DSM | 30 | CV50DSM3000 | Ductile Iron | Flanged | Class 150 | 91,807.00 | |
