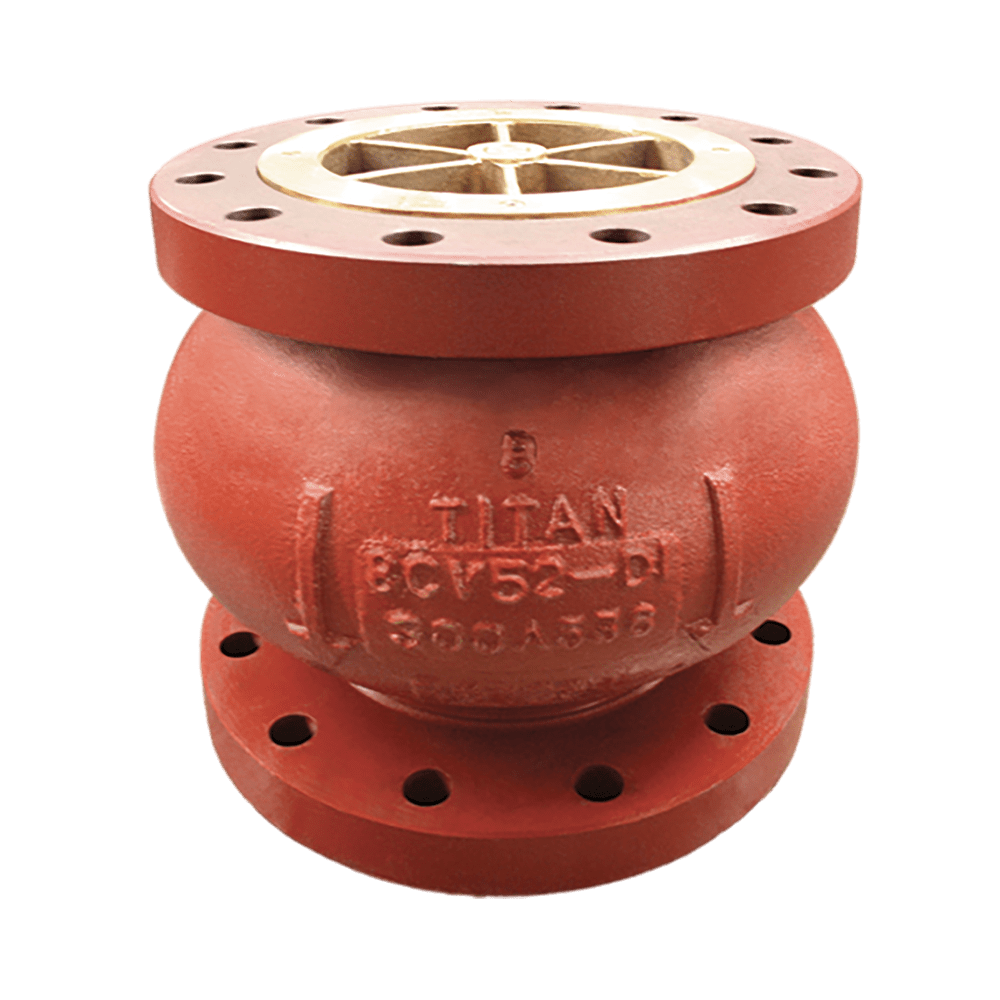

CV52-DI

CV52-DI

CV52-DI-Temp

Valve Specification

Body Material: Ductile Iron (ASTM A536)
End Connection:
ASME Rating: Class 300
Size Range: 2 in ~ 24 in

Pressure Rating

Ductile Iron - ASTM A395 - Class 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Numbers

General Information

Product Features

Designed For Long Service Life
Minimal Head Loss
Quick Closure To Reduce Water Hammer
Metal-To-Metal Seats

Pressure-Temperature Chart

Pressure Drop Calculator

Please select a valid form

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
CV52-DI	CV52-DBM	2	CV52DBM0200	Ductile Iron	Flanged	Class 300	1,003.00
CV52-DI	CV52-DBM	2	CV52DBM0250	Ductile Iron	Flanged	Class 300	1,369.00
CV52-DI	CV52-DBM	3	CV52DBM0300	Ductile Iron	Flanged	Class 300	1,720.00
CV52-DI	CV52-DBM	4	CV52DBM0400	Ductile Iron	Flanged	Class 300	2,467.00
CV52-DI	CV52-DBM	5	CV52DBM0500	Ductile Iron	Flanged	Class 300	3,707.00
CV52-DI	CV52-DBM	6	CV52DBM0600	Ductile Iron	Flanged	Class 300	4,568.00
CV52-DI	CV52-DBM	8	CV52DBM0800	Ductile Iron	Flanged	Class 300	6,949.00
CV52-DI	CV52-DBM	10	CV52DBM1000	Ductile Iron	Flanged	Class 300	11,486.00
CV52-DI	CV52-DBM	12	CV52DBM1200	Ductile Iron	Flanged	Class 300	17,042.00
CV52-DI	CV52-DBM	14	CV52DBM1400	Ductile Iron	Flanged	Class 300	22,692.00
CV52-DI	CV52-DBM	16	CV52DBM1600	Ductile Iron	Flanged	Class 300	34,162.00
CV52-DI	CV52-DBM	18	CV52DBM1800	Ductile Iron	Flanged	Class 300	41,478.00
CV52-DI	CV52-DBM	20	CV52DBM2000	Ductile Iron	Flanged	Class 300	65,578.00
CV52-DI	CV52-DSM	2	CV52DSM0200	Ductile Iron	Flanged	Class 300	1,205.00
CV52-DI	CV52-DSM	2	CV52DSM0250	Ductile Iron	Flanged	Class 300	1,403.00
CV52-DI	CV52-DSM	3	CV52DSM0300	Ductile Iron	Flanged	Class 300	1,797.00
CV52-DI	CV52-DSM	4	CV52DSM0400	Ductile Iron	Flanged	Class 300	2,560.00
CV52-DI	CV52-DSM	5	CV52DSM0500	Ductile Iron	Flanged	Class 300	3,893.00
CV52-DI	CV52-DSM	6	CV52DSM0600	Ductile Iron	Flanged	Class 300	4,618.00
CV52-DI	CV52-DSM	8	CV52DSM0800	Ductile Iron	Flanged	Class 300	7,550.00
CV52-DI	CV52-DSM	10	CV52DSM1000	Ductile Iron	Flanged	Class 300	11,694.00
CV52-DI	CV52-DSM	12	CV52DSM1200	Ductile Iron	Flanged	Class 300	17,677.00
CV52-DI	CV52-DSM	14	CV52DSM1400	Ductile Iron	Flanged	Class 300	23,465.00
CV52-DI	CV52-DSM	16	CV52DSM1600	Ductile Iron	Flanged	Class 300	33,870.00
CV52-DI	CV52-DSM	18	CV52DSM1800	Ductile Iron	Flanged	Class 300	36,163.00
CV52-DI	CV52-DSM	20	CV52DSM2000	Ductile Iron	Flanged	Class 300	51,863.00
		Size	Part Code	Body Material	End Connections

Part Numbers

Available Soon - Check Back Often
