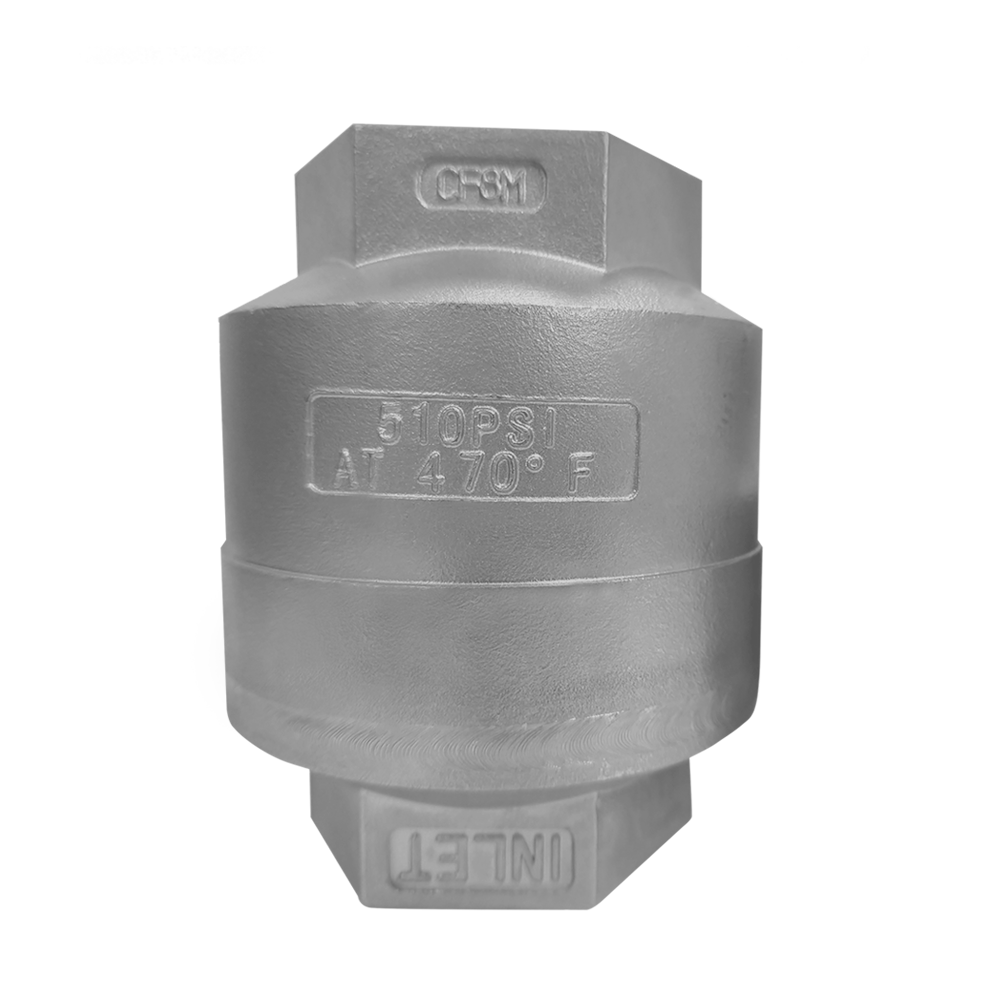

CV88S-SS

Valve Specification
- Body Material: Stainless Steel (ASTM A351 Gr. CF8M)
- End Connection:
- ASME Rating: Class 300
- Size Range: 1/2 in ~ 3 in
Pressure Rating
- Stainless Steel - ASTM A351 Gr. CF8M - Class 300 1/2 ~ 3 - WOG (Non-shock): 720 PSI @ 100 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Simplified Design
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Designed For Long Service Life
- Available in Socket Weld
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
---|---|---|---|---|---|---|---|---|
CV88S-SS | CV88-SSM | 0 | CV88SSM0050 | Stainless Steel | Socket | Class 150 | 281.00 | |
CV88S-SS | CV88-SSM | 0 | CV88SSM0075 | Stainless Steel | Socket | Class 150 | 339.00 | |
CV88S-SS | CV88-SSM | 1 | CV88SSM0100 | Stainless Steel | Socket | Class 150 | 397.00 | |
CV88S-SS | CV88-SSM | 1 | CV88SSM0125 | Stainless Steel | Socket | Class 150 | 596.00 | |
CV88S-SS | CV88-SSM | 1 | CV88SSM0150 | Stainless Steel | Socket | Class 300 | 662.00 | |
CV88S-SS | CV88-SSM | 2 | CV88SSM0200 | Stainless Steel | Socket | Class 300 | 918.00 | |
CV88S-SS | CV88-SSM | 2 | CV88SSM0250 | Stainless Steel | Socket | Class 300 | ||
CV88S-SS | CV88-SSM | 3 | CV88SSM0300 | Stainless Steel | Socket | Class 300 | 2,280.00 | |
Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
