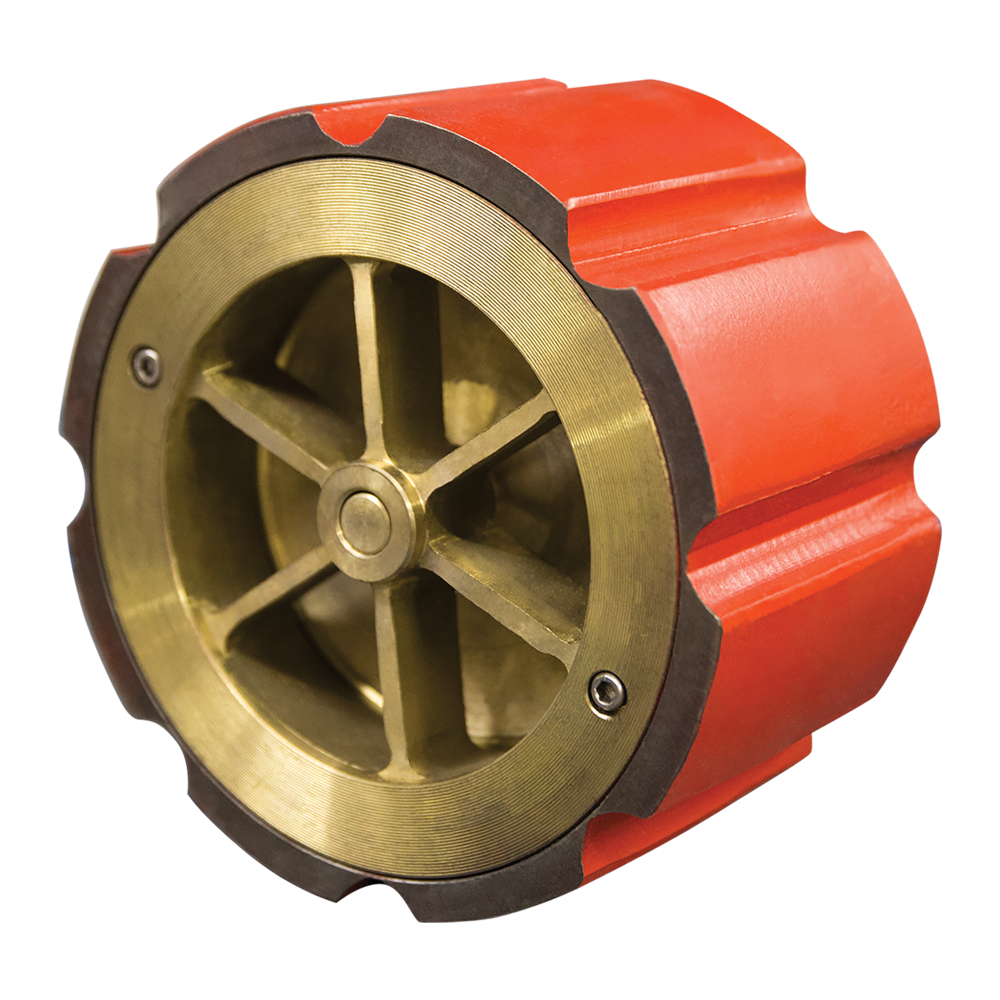

CV90-DI
Valve Specification
- Body Material: Ductile Iron (ASTM A536)
- End Connection:
- ASME Rating: Class 150
- Size Range: 2 in ~ 12 in
Pressure Rating
- Ductile Iron - ASTM A395 - Class 150 2 ~ 12 - WOG (Non-shock): 250 PSI @ 100 °F (2" ~ 12")
- Ductile Iron - ASTM A536 - Class 300 2 ~ 6 - WOG (Non-shock): 640 PSI @ 100 °F (2" ~ 6")
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Designed For Long Service Life
- Minimal Head Loss
- Quick Closure To Reduce Water Hammer
- Resilient Soft Seats
- 2 ~ 6 Dual Rated 150/300
- FM Approved
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| CV90-DI | CV90-DBB | 2 | CV90DBB0200 | Ductile Iron | Wafer | Class 150 | 380.00 | |
| CV90-DI | CV90-DBB | 2 | CV90DBB0250 | Ductile Iron | Wafer | Class 150 | 505.00 | |
| CV90-DI | CV90-DBB | 3 | CV90DBB0300 | Ductile Iron | Wafer | Class 150 | 684.00 | |
| CV90-DI | CV90-DBB | 4 | CV90DBB0400 | Ductile Iron | Wafer | Class 150 | 1,078.00 | |
| CV90-DI | CV90-DBB | 5 | CV90DBB0500 | Ductile Iron | Wafer | Class 150 | 1,684.00 | |
| CV90-DI | CV90-DBB | 6 | CV90DBB0600 | Ductile Iron | Wafer | Class 150 | 2,342.00 | |
| CV90-DI | CV90-DBB | 8 | CV90DBB0800 | Ductile Iron | Wafer | Class 150 | 4,997.00 | |
| CV90-DI | CV90-DBB | 10 | CV90DBB1000 | Ductile Iron | Wafer | Class 150 | 8,643.00 | |
| CV90-DI | CV90-DBB | 12 | CV90DBB1200 | Ductile Iron | Wafer | Class 150 | 14,217.00 | |
| CV90-DI | CV90-DSV | 2 | CV90DSV0200 | Ductile Iron | Wafer | Class 150 | 567.00 | |
| CV90-DI | CV90-DSV | 2 | CV90DSV0250 | Ductile Iron | Wafer | Class 150 | 647.00 | |
| CV90-DI | CV90-DSV | 3 | CV90DSV0300 | Ductile Iron | Wafer | Class 150 | 765.00 | |
| CV90-DI | CV90-DSV | 4 | CV90DSV0400 | Ductile Iron | Wafer | Class 150 | 1,129.00 | |
| CV90-DI | CV90-DSV | 5 | CV90DSV0500 | Ductile Iron | Wafer | Class 150 | 1,746.00 | |
| CV90-DI | CV90-DSV | 6 | CV90DSV0600 | Ductile Iron | Wafer | Class 150 | 2,783.00 | |
| CV90-DI | CV90-DSV | 8 | CV90DSV0800 | Ductile Iron | Wafer | Class 150 | 5,125.00 | |
| CV90-DI | CV90-DSV | 10 | CV90DSV1000 | Ductile Iron | Wafer | Class 150 | 9,105.00 | |
| CV90-DI | CV90-DSV | 12 | CV90DSV1200 | Ductile Iron | Wafer | Class 150 | 14,423.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
