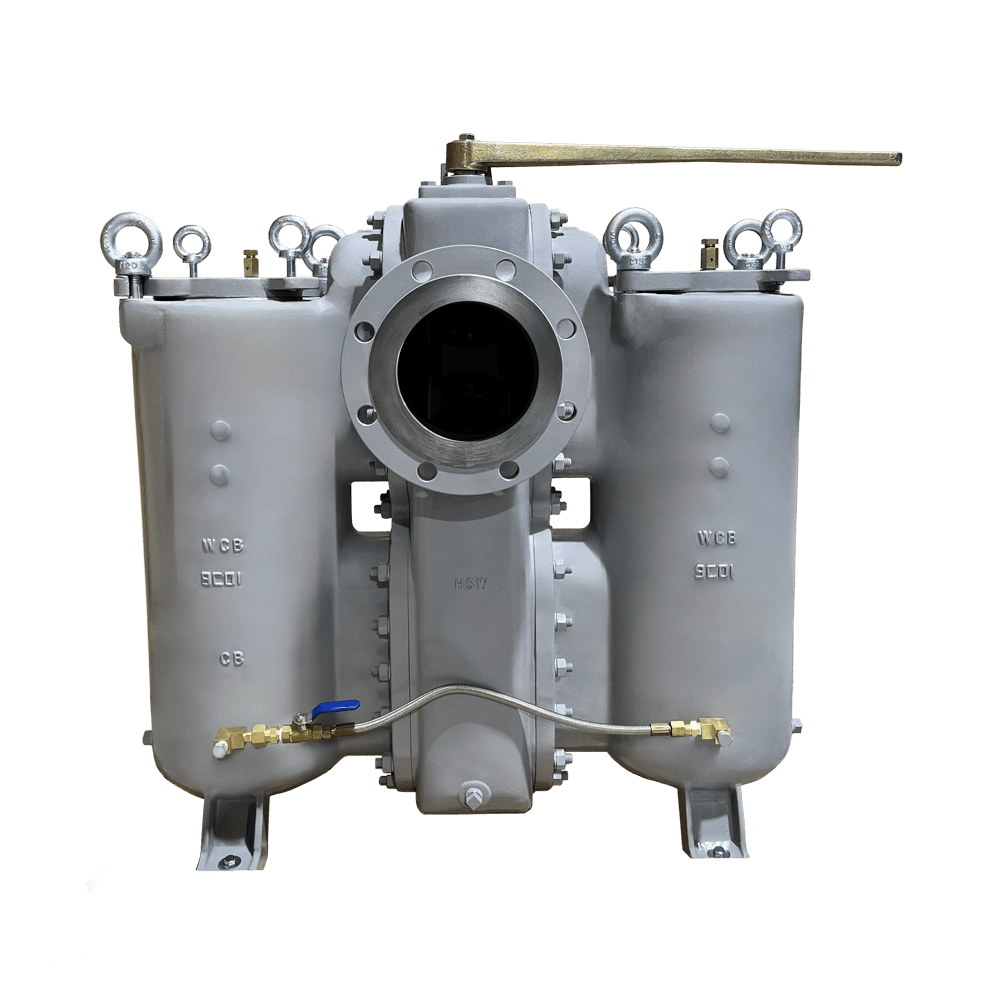

DS696-CS (QB)

DS696-CS Quad Ball Temp

  • Body Material: Carbon Steel (A216 Gr. WCB)
  • End Connection: Flanged - RF Ends
  • ASME Rating: Class 150
  • Size Range: 6 in ~ 8 in

  • Carbon Steel - ASTM A216 Gr. WCB - Class 150
    • 6 ~ 8 - WOG (Non-shock): 285 PSI @ 100 °F

General Information

    Product Features
  • Quad-Ball Diverter Design
  • Low Operating Torque
  • Reduced Maintenance
  • Numerous Other Benefits

Pressure-Temperature Chart

Pressure Drop Calculator

Pressure Drop Calculator
gpm
Cv
Cr
psi
  • Notice - Acceptable Pressure Loss
  • Caution - Excessive Pressure Loss
  • Danger - Critical Pressure Loss
These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View


Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include:  "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number



Available Soon - Check Back Often
