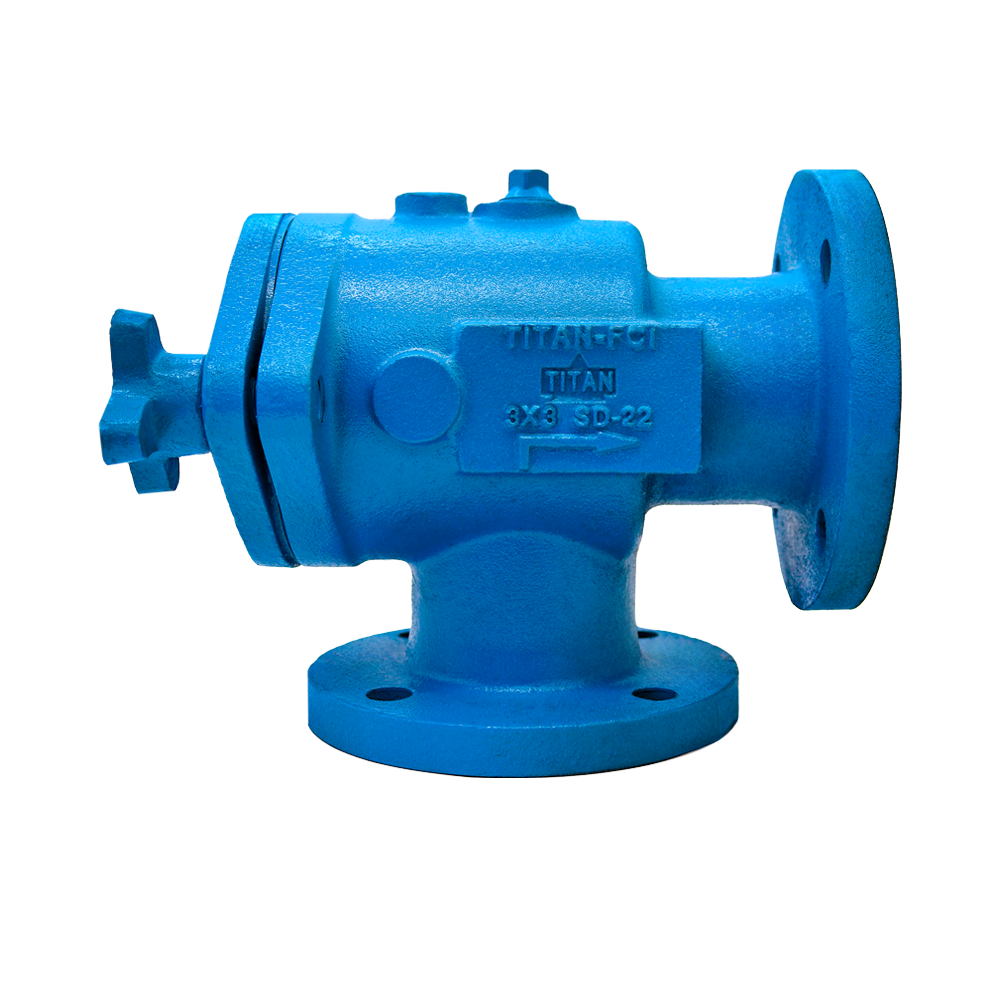

SD22-CI
Valve Specification
- Body Material: Cast Iron (ASTM A126 Gr. B)
- End Connection: Flanged - FF Ends
- ASME Rating: Class 125
- Size Range: 2 in ~ 18 in
Pressure Rating
- Cast Iron - ASTM A126 Gr. B - Class 125 2 ~ 12 - WOG (Non-shock): 200 PSI @ 150 °F
- Cast Iron - ASTM A126 Gr. B - Class 125 14 ~ 24 - WOG (Non-shock) - 150 PSI @ 150 °F
General Information
Pressure-Temperature Chart
Pressure Drop Calculator
List Price View
Part Numbers
General Information
-
Product Features
- Economical Protection for Pumps
- Energy Efficient Design
- Easy to Service
Pressure-Temperature Chart
Pressure Drop Calculator
Please select a valid form
List Price View
| Series | Model | Size | Part Code | Body Material | End Connections | ASME Class | List Standard | List Mesh |
|---|---|---|---|---|---|---|---|---|
| SD22-CI | SD22-CI | 10 | SD22I10X10 | Cast Iron | Flanged | Class 150 | 9,845.00 | |
| SD22-CI | SD22-CI | 10 | SD22I10X8 | Cast Iron | Flanged | Class 150 | 6,716.00 | |
| SD22-CI | SD22-CI | 12 | SD22I12X10 | Cast Iron | Flanged | Class 150 | 10,739.00 | |
| SD22-CI | SD22-CI | 12 | SD22I12X12 | Cast Iron | Flanged | Class 150 | 12,081.00 | |
| SD22-CI | SD22-CI | 12 | SD22I12X8 | Cast Iron | Flanged | Class 150 | 10,293.00 | |
| SD22-CI | SD22-CI | 2 | SD22I2.5X2 | Cast Iron | Flanged | Class 150 | 824.00 | |
| SD22-CI | SD22-CI | 5 | SD22I2.5X2.5 | Cast Iron | Flanged | Class 150 | 998.00 | |
| SD22-CI | SD22-CI | 2 | SD22I2X1.5 | Cast Iron | Flanged | Class 150 | 626.00 | |
| SD22-CI | SD22-CI | 2 | SD22I2X2 | Cast Iron | Flanged | Class 150 | 728.00 | |
| SD22-CI | SD22-CI | 3 | SD22I3X2 | Cast Iron | Flanged | Class 150 | 1,081.00 | |
| SD22-CI | SD22-CI | 2 | SD22I3X2.5 | Cast Iron | Flanged | Class 150 | 1,164.00 | |
| SD22-CI | SD22-CI | 3 | SD22I3X3 | Cast Iron | Flanged | Class 150 | 1,220.00 | |
| SD22-CI | SD22-CI | 4 | SD22I4X3 | Cast Iron | Flanged | Class 150 | 1,602.00 | |
| SD22-CI | SD22-CI | 4 | SD22I4X4 | Cast Iron | Flanged | Class 150 | 1,805.00 | |
| SD22-CI | SD22-CI | 5 | SD22I5X4 | Cast Iron | Flanged | Class 150 | 2,691.00 | |
| SD22-CI | SD22-CI | 5 | SD22I5X5 | Cast Iron | Flanged | Class 150 | 2,691.00 | |
| SD22-CI | SD22-CI | 6 | SD22I6X4 | Cast Iron | Flanged | Class 150 | 3,026.00 | |
| SD22-CI | SD22-CI | 6 | SD22I6X5 | Cast Iron | Flanged | Class 150 | 3,305.00 | |
| SD22-CI | SD22-CI | 6 | SD22I6X6 | Cast Iron | Flanged | Class 150 | 3,555.00 | |
| SD22-CI | SD22-CI | 8 | SD22I8X6 | Cast Iron | Flanged | Class 150 | 4,110.00 | |
| SD22-CI | SD22-CI | 8 | SD22I8X8 | Cast Iron | Flanged | Class 150 | 6,286.00 | |
| Size | Part Code | Body Material | End Connections |
Part Numbers
Available Soon - Check Back Often
