Name: YS12-DI
SKU: YS12-DI
Availability: InStock

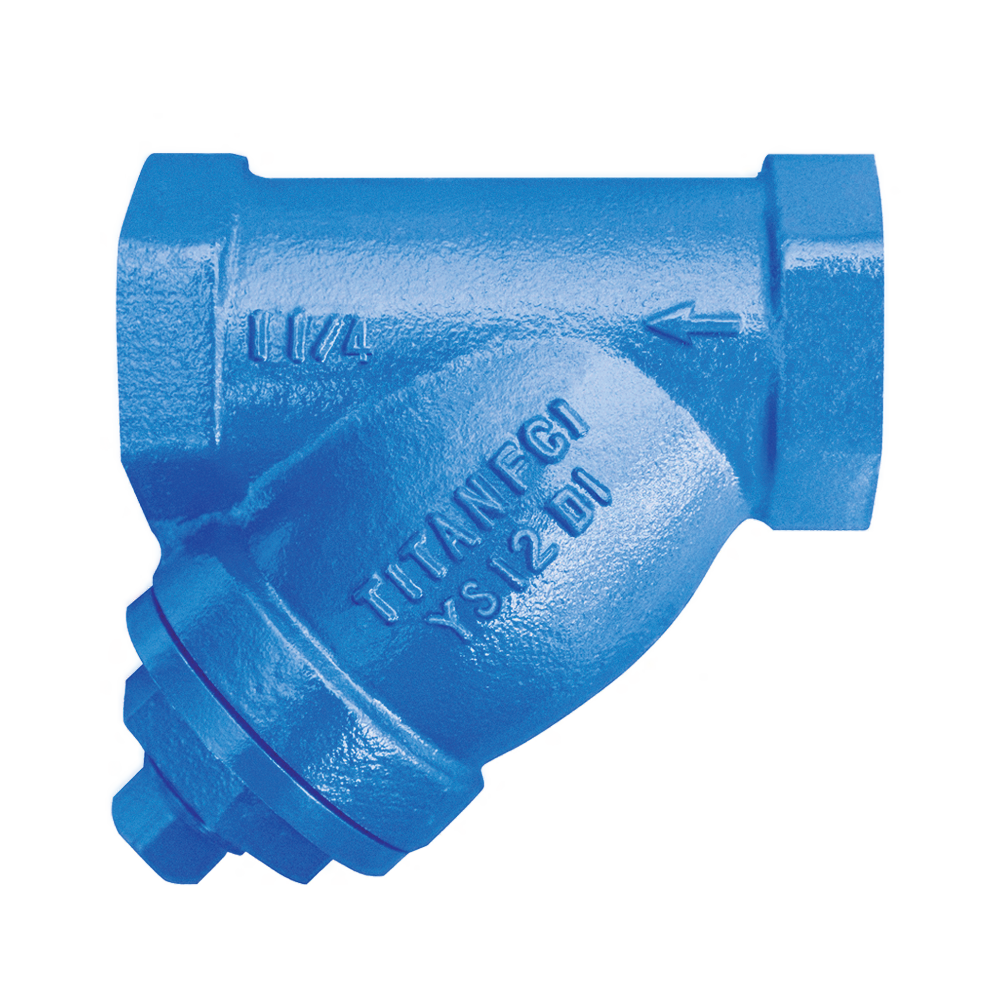

YS12-DI

Y Strainer Specification

Body Material: Ductile Iron (A395)
End Connection: Threaded Ends
ASME Rating: Class 300
Size Range: 1/4 in ~ 3 in

Pressure Rating

Ductile Iron - ASTM A395 - Class 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Enhanced Design ASTM A395 Ductile Iron
Precision Machined Seats
Self-Cleaning Capability
Epoxy Painted
Threaded Cap
Natural Gas and Other Special Applications

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS12-DI	YS12-DI	0	YS12D0025	Ductile Iron	Threaded	Class 250	37.00	41.00
YS12-DI	YS12-DI	0	YS12D0038	Ductile Iron	Threaded	Class 250	37.00	41.00
YS12-DI	YS12-DI	0	YS12D0050	Ductile Iron	Threaded	Class 250	38.00	43.00
YS12-DI	YS12-DI	0	YS12D0075	Ductile Iron	Threaded	Class 250	51.00	57.00
YS12-DI	YS12-DI	1	YS12D0100	Ductile Iron	Threaded	Class 250	63.00	70.00
YS12-DI	YS12-DI	1	YS12D0125	Ductile Iron	Threaded	Class 250	92.00	101.00
YS12-DI	YS12-DI	1	YS12D0150	Ductile Iron	Threaded	Class 250	138.00	149.00
YS12-DI	YS12-DI	2	YS12D0200	Ductile Iron	Threaded	Class 250	186.00	201.00
YS12-DI	YS12-DI	2	YS12D0250	Ductile Iron	Threaded	Class 250	368.00	397.00
YS12-DI	YS12-DI	3	YS12D0300	Ductile Iron	Threaded	Class 250	465.00	501.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
