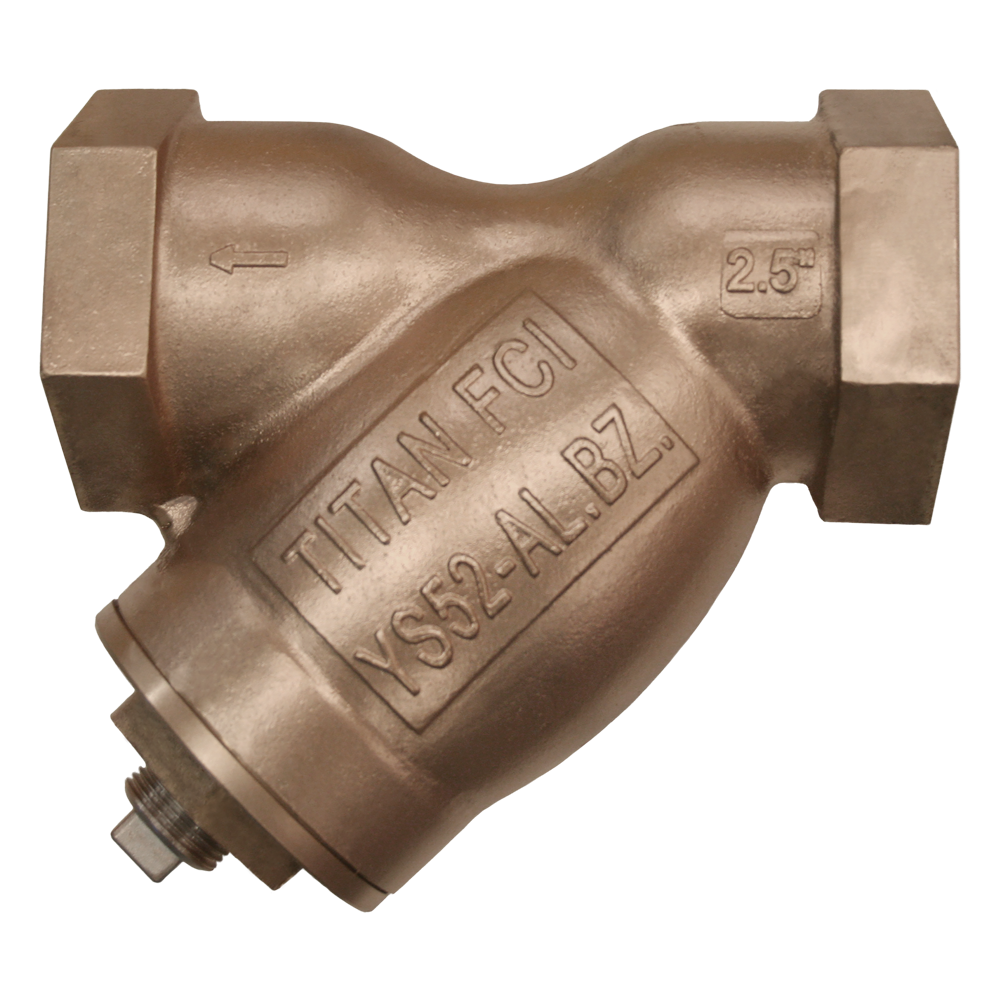

YS52-AB

Y Strainer Specification

Body Material: Aluminum Bronze (B148)
End Connection: Threaded Ends
ASME Rating: Class 250
Size Range: 1/4 in ~ 3 in

Pressure Rating

Aluminum Bronze - ASTM B148 Gr. 9D - Class 250

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

ASTM B148 Body Material
Large Straining Capacity
Precision Machined Seats
Self-Cleaning Capability
Meets Lead-Free Requirements

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS52-AB	YS52-AB	0	YS52AB0025	Aluminum Bronze	Threaded	Class 250	134.00	145.00
YS52-AB	YS52-AB	0	YS52AB0038	Aluminum Bronze	Threaded	Class 250	134.00	145.00
YS52-AB	YS52-AB	0	YS52AB0050	Aluminum Bronze	Threaded	Class 250	134.00	145.00
YS52-AB	YS52-AB	0	YS52AB0075	Aluminum Bronze	Threaded	Class 250	212.00	228.00
YS52-AB	YS52-AB	1	YS52AB0100	Aluminum Bronze	Threaded	Class 250	296.00	318.00
YS52-AB	YS52-AB	1	YS52AB0125	Aluminum Bronze	Threaded	Class 250	441.00	475.00
YS52-AB	YS52-AB	1	YS52AB0150	Aluminum Bronze	Threaded	Class 250	679.00	731.00
YS52-AB	YS52-AB	2	YS52AB0200	Aluminum Bronze	Threaded	Class 250	995.00	1,076.00
YS52-AB	YS52-AB	2	YS52AB0250	Aluminum Bronze	Threaded	Class 250	2,921.00	3,141.00
YS52-AB	YS52-AB	3	YS52AB0300	Aluminum Bronze	Threaded	Class 250	3,086.00	3,317.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
