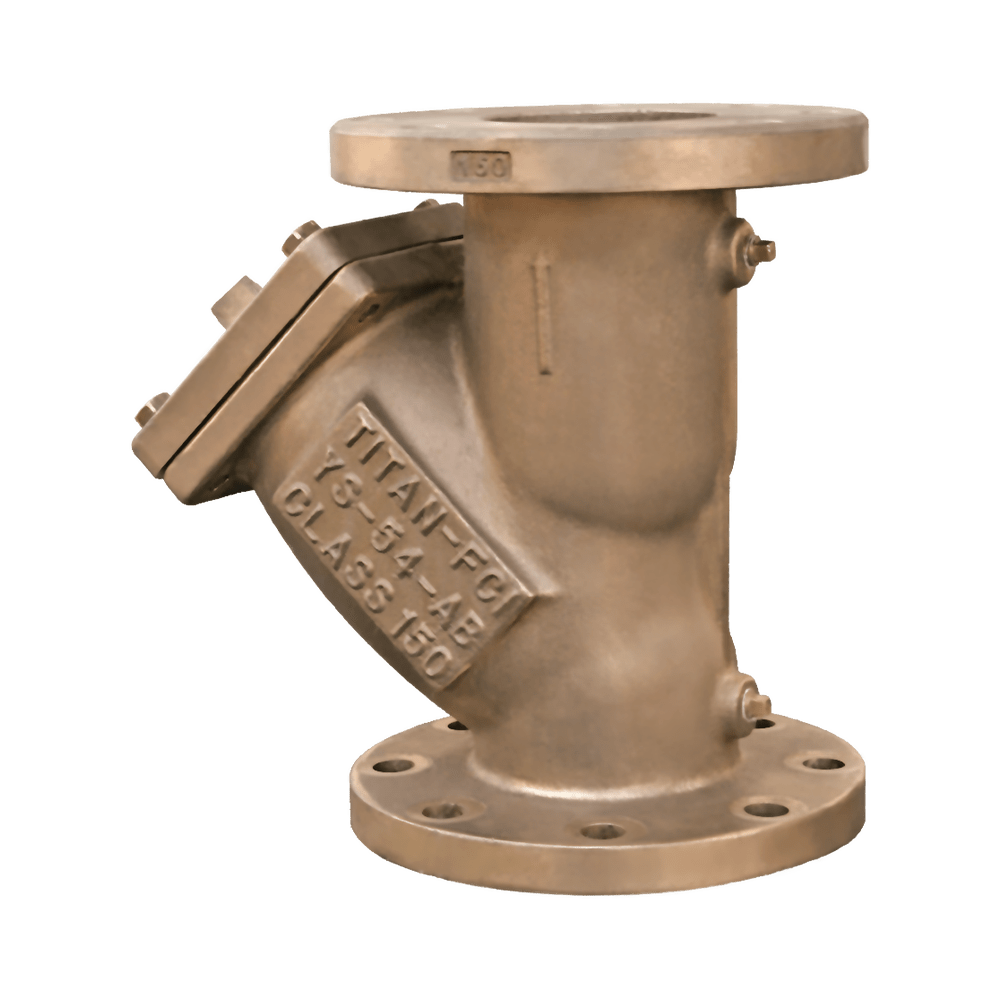

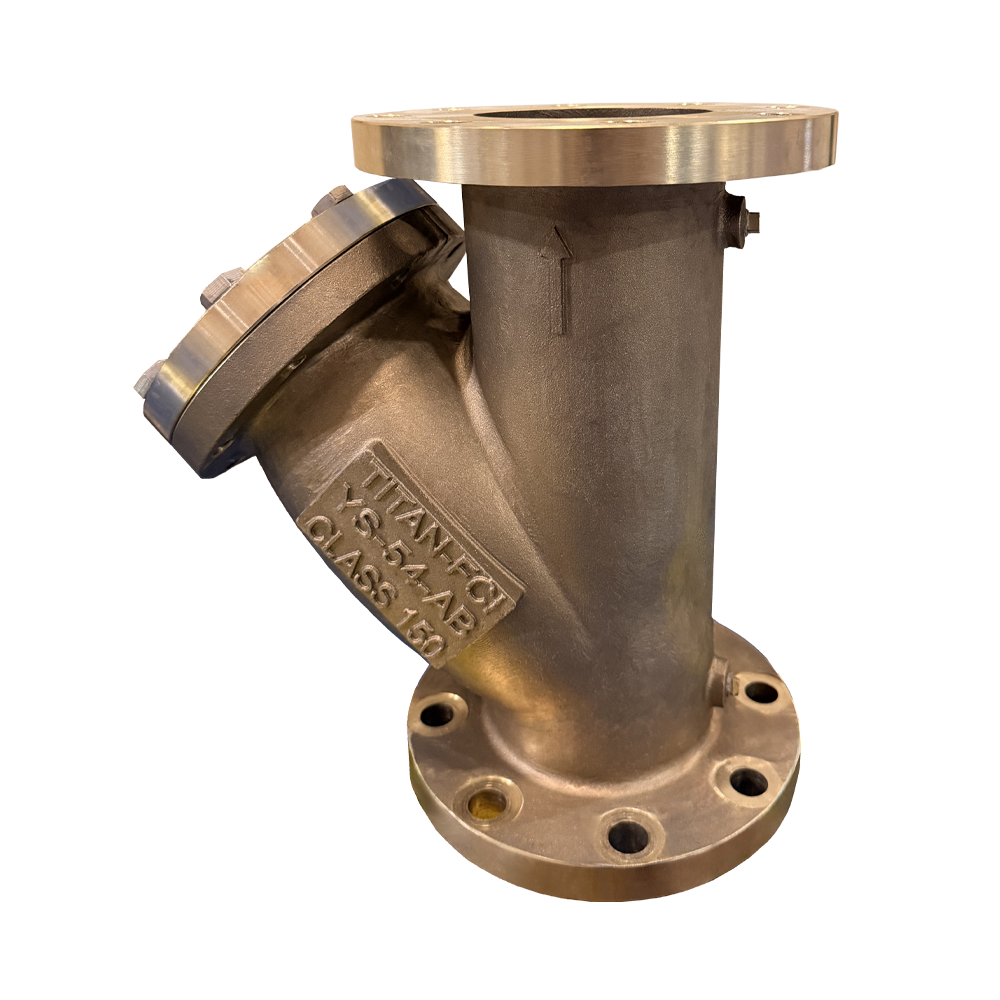

YS54-AB

Y Strainer Specification

Body Material: Aluminum Bronze (B148)
End Connection: Flanged - FF Ends
ASME Rating: Class 150
Size Range: 2 in ~ 12 in

Pressure Rating

Aluminum Bronze - ASTM B148 Gr. 9D - Class 150

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

ASTM B148 Body Material
New Design with Gauge Taps
Large Straining Capacity
Precision Machined Seats
Self Cleaning Capability
Meets Lead-Free Requirements

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS54-AB	YS54-AB	2	YS54AB0200	Aluminum Bronze	Flanged	Class 150	3,649.00	3,921.00
YS54-AB	YS54-AB	2	YS54AB0250	Aluminum Bronze	Flanged	Class 150	5,479.00	5,887.00
YS54-AB	YS54-AB	3	YS54AB0300	Aluminum Bronze	Flanged	Class 150	6,109.00	6,564.00
YS54-AB	YS54-AB	4	YS54AB0400	Aluminum Bronze	Flanged	Class 150	9,961.00	10,704.00
YS54-AB	YS54-AB	5	YS54AB0500	Aluminum Bronze	Flanged	Class 150	16,583.00	17,821.00
YS54-AB	YS54-AB	6	YS54AB0600	Aluminum Bronze	Flanged	Class 150	18,528.00	19,909.00
YS54-AB	YS54-AB	8	YS54AB0800	Aluminum Bronze	Flanged	Class 150	35,987.00	37,222.00
YS54-AB	YS54-AB	10	YS54AB1000	Aluminum Bronze	Flanged	Class 150	61,762.00	64,554.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
