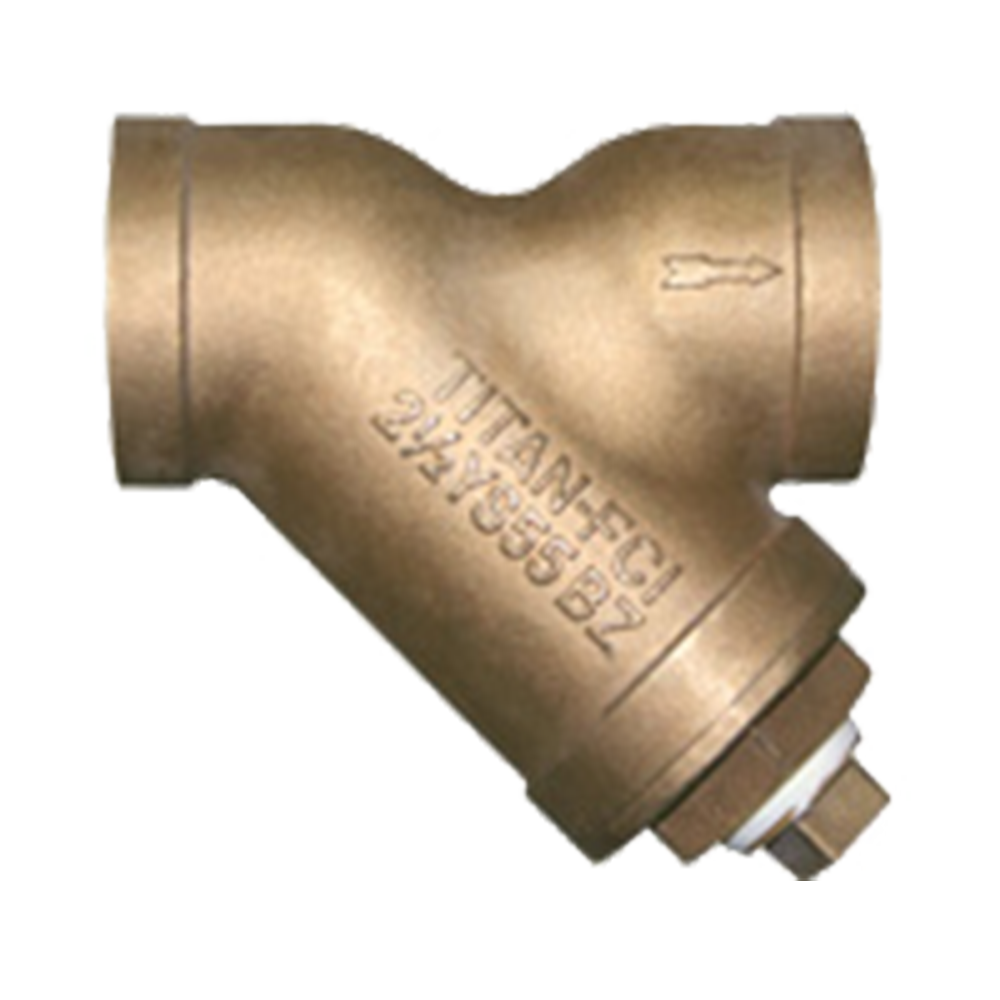

YS55-BZ Cast Bronze Y (Wye) Strainer

YS55-BZ

Y Strainer Specification

Body Material: Cast Bronze (B584)
End Connection: Threaded Ends
ASME Rating: Class 125
Size Range: 1/4 in ~ 3 in

Pressure Rating

Cast Bronze - C84400 - ASTM B584 - Class 125

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Large Straining Capacity
Precision Machined Seats
Self-Cleaning Capability
Threaded Cap

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS55-BZ	YS55-BZ	0	YS55BZ0025	Bronze	Threaded	Class 125	87.00	93.00
YS55-BZ	YS55-BZ	0	YS55BZ0038	Bronze	Threaded	Class 125	87.00	93.00
YS55-BZ	YS55-BZ	0	YS55BZ0050	Bronze	Threaded	Class 125	87.00	93.00
YS55-BZ	YS55-BZ	0	YS55BZ0075	Bronze	Threaded	Class 125	149.00	158.00
YS55-BZ	YS55-BZ	1	YS55BZ0100	Bronze	Threaded	Class 125	206.00	219.00
YS55-BZ	YS55-BZ	1	YS55BZ0125	Bronze	Threaded	Class 125	375.00	398.00
YS55-BZ	YS55-BZ	1	YS55BZ0150	Bronze	Threaded	Class 125	490.00	520.00
YS55-BZ	YS55-BZ	2	YS55BZ0200	Bronze	Threaded	Class 125	870.00	923.00
YS55-BZ	YS55-BZ	2	YS55BZ0250	Bronze	Threaded	Class 125	1,424.00	1,510.00
YS55-BZ	YS55-BZ	3	YS55BZ0300	Bronze	Threaded	Class 125	2,457.00	2,605.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
