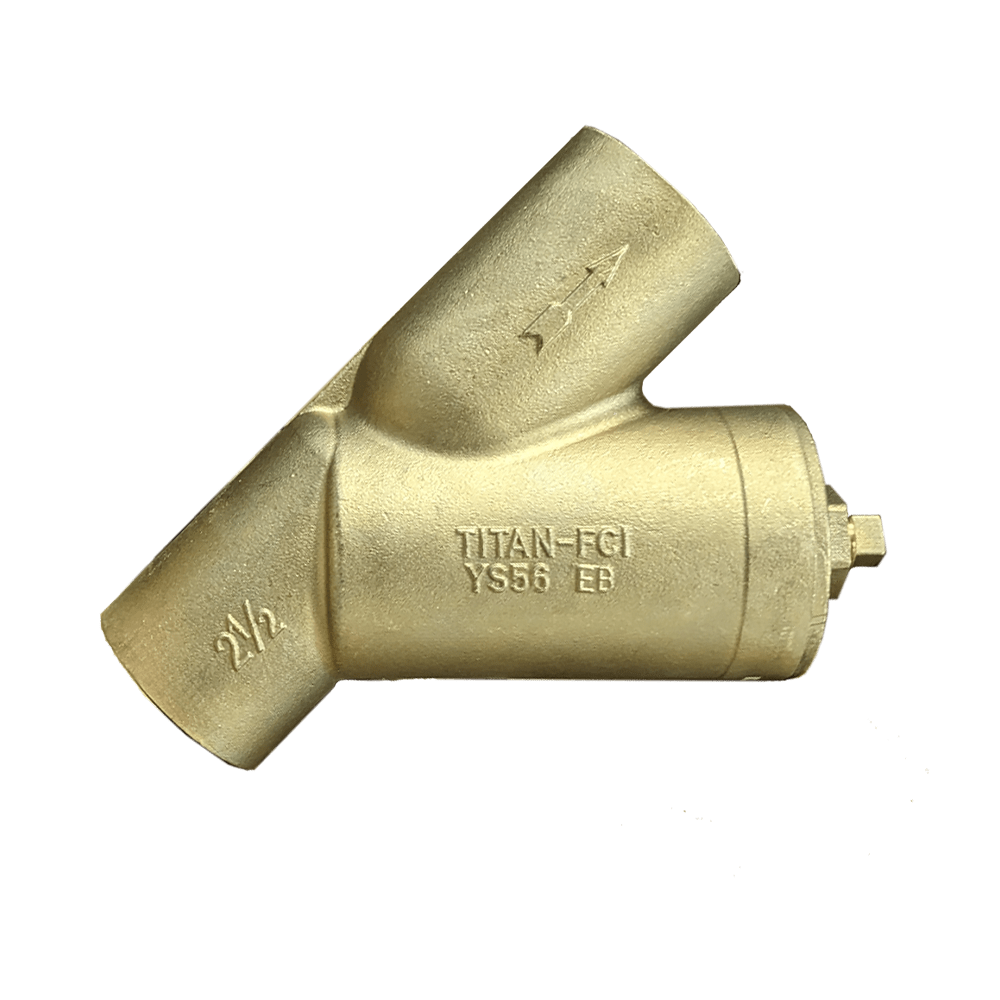

YS56-EB

Y Strainer Specification

Body Material: Eco-Brass (B505-08)
End Connection: Solder Ends
ASME Rating: Class 125
Size Range: 1/4 in ~ 3 in

Pressure Rating

Eco-Brass - ASTM B505-08 - Class 125
Eco-Brass - ASTM B505-08 - Class 125

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

New Eco-Brass Material
Large Straining Capacity
Precision Machined Seats
Self Cleaning Capability
Potable Water/FDA Applications

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS56-EB	YS56-EB	0	YS56EB0025	Eco Brass	Socket	Class 125	73.00	80.00
YS56-EB	YS56-EB	0	YS56EB0038	Eco Brass	Socket	Class 125	73.00	80.00
YS56-EB	YS56-EB	0	YS56EB0050	Eco Brass	Socket	Class 125	73.00	80.00
YS56-EB	YS56-EB	0	YS56EB0075	Eco Brass	Socket	Class 125	124.00	135.00
YS56-EB	YS56-EB	1	YS56EB0100	Eco Brass	Socket	Class 125	168.00	183.00
YS56-EB	YS56-EB	1	YS56EB0125	Eco Brass	Socket	Class 125	313.00	342.00
YS56-EB	YS56-EB	1	YS56EB0150	Eco Brass	Socket	Class 125	408.00	445.00
YS56-EB	YS56-EB	2	YS56EB0200	Eco Brass	Socket	Class 125	723.00	786.00
YS56-EB	YS56-EB	2	YS56EB0250	Eco Brass	Socket	Class 125	1,185.00	1,287.00
YS56-EB	YS56-EB	3	YS56EB0300	Eco Brass	Socket	Class 125	2,039.00	2,216.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
