Name: YS58-CI
SKU: YS58-CI
Availability: InStock

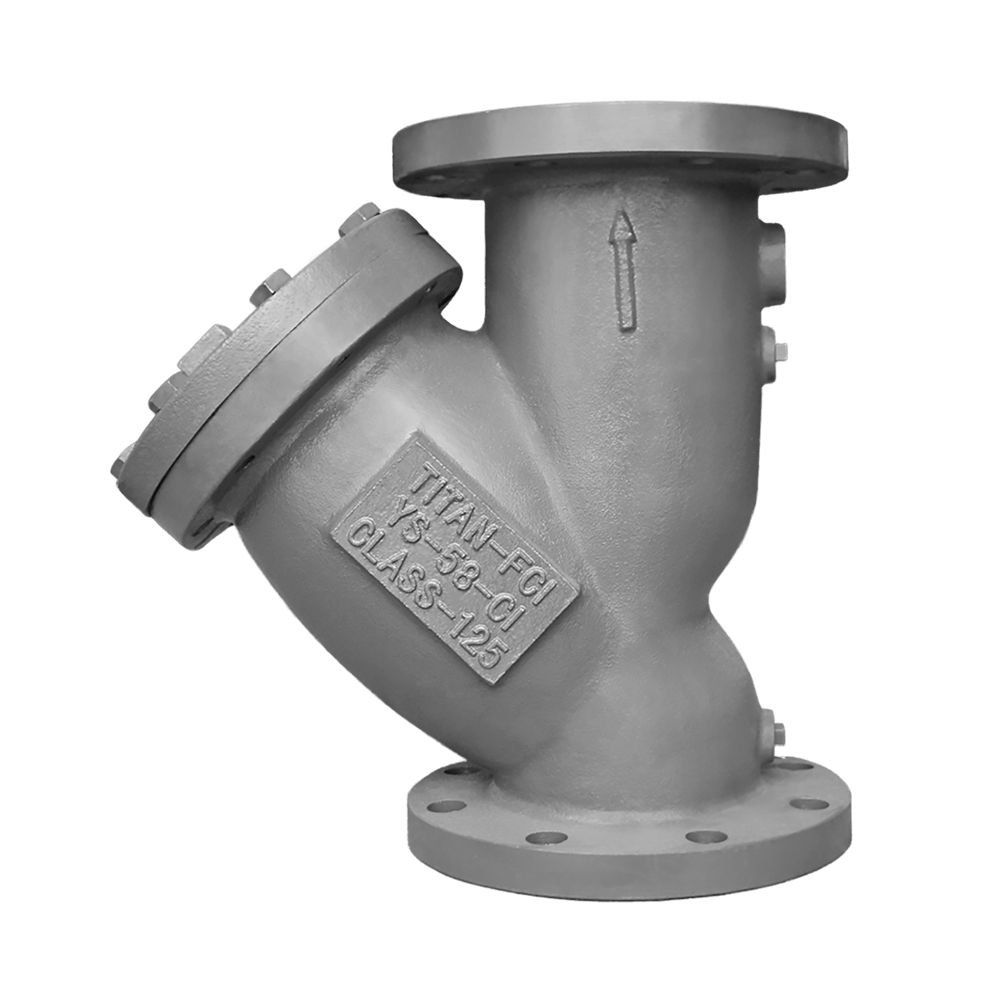

YS58-CI

Y Strainer Specification

Pressure Rating

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Inlet and Outlet Gauge Taps - Pressure Gauges Available
Large Straining Capacity for Heavy Debris Loading Applications
Precision Machined Seats for Fine Filtration Applications
Self-Cleaning Capability with Factory Installed Ball Valve
Epoxy Painted for Extended Shelf Life
Custom Cover Designs to Facilitate Maintenance Operations

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS58-CI	YS58-CI	2	YS58I0200	Cast Iron	Flanged	Class 125	403.00	426.00
YS58-CI	YS58-CI	2	YS58I0250	Cast Iron	Flanged	Class 125	522.00	552.00
YS58-CI	YS58-CI	3	YS58I0300	Cast Iron	Flanged	Class 125	616.00	652.00
YS58-CI	YS58-CI	4	YS58I0400	Cast Iron	Flanged	Class 125	1,008.00	1,066.00
YS58-CI	YS58-CI	5	YS58I0500	Cast Iron	Flanged	Class 125	1,592.00	1,683.00
YS58-CI	YS58-CI	6	YS58I0600	Cast Iron	Flanged	Class 125	2,084.00	2,204.00
YS58-CI	YS58-CI	8	YS58I0800	Cast Iron	Flanged	Class 125	3,517.00	3,718.00
YS58-CI	YS58-CI	10	YS58I1000	Cast Iron	Flanged	Class 125	6,145.00	6,497.00
YS58-CI	YS58-CI	12	YS58I1200	Cast Iron	Flanged	Class 125	8,782.00	9,284.00
YS58-CI	YS58-CI	14	YS58I1400	Cast Iron	Flanged	Class 125	16,201.00	17,127.00
YS58-CI	YS58-CI	16	YS58I1600	Cast Iron	Flanged	Class 125	22,931.00	24,242.00
YS58-CI	YS58-CI	18	YS58I1800	Cast Iron	Flanged	Class 125	31,225.00	33,010.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
