Name: YS58G-DI
SKU: YS58G-DI
Availability: InStock

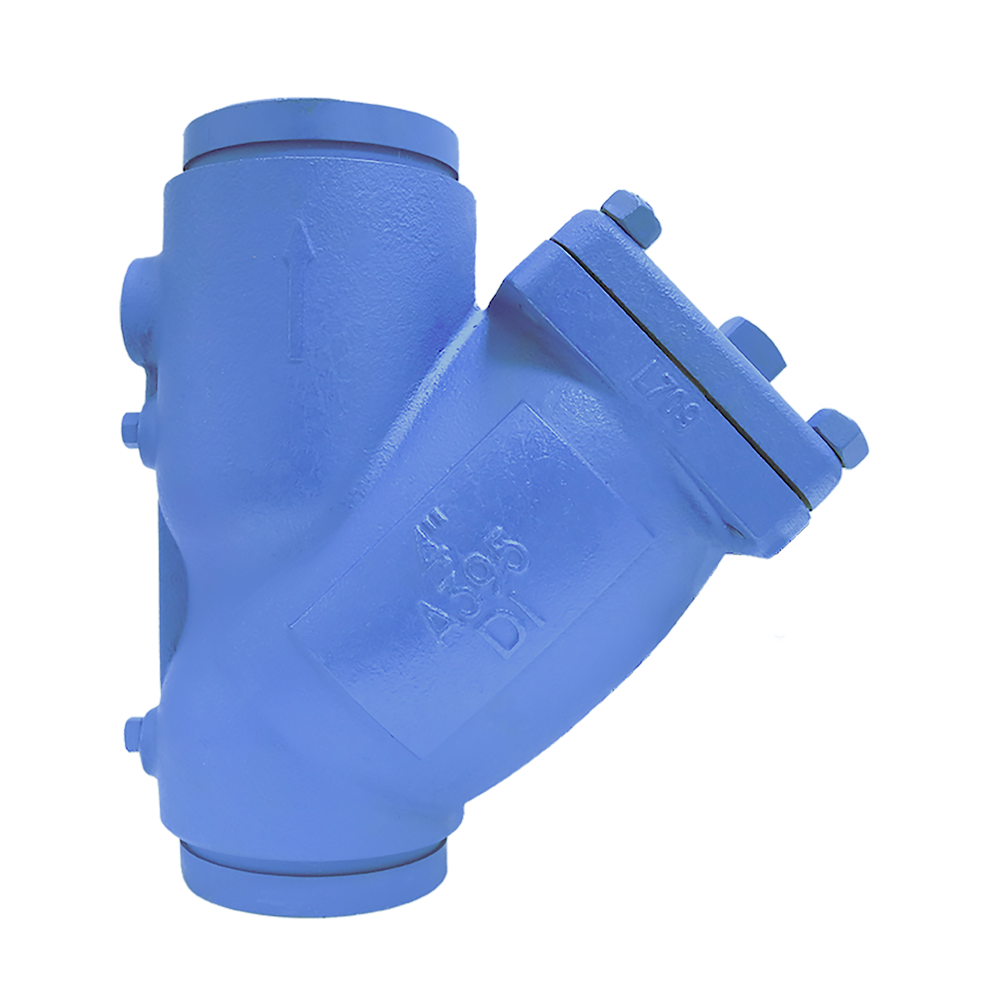

YS58G-DI

Y Strainer Specification

Body Material: Ductile Iron (A395)
End Connection: Grooved Ends
ASME Rating: 300 WOG
Size Range: 2 in ~ 12 in

Pressure Rating

Ductile Iron - ASTM A395 - WOG 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Grooved-End Design
Large Straining Capacity
Rugged Construction
Self-Cleaning Capability
Epoxy Painted
Potable Water/FDA Approved Coatings Available
Natural Gas Applications

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS58G-DI	YS58G-DI	2	YS58DG0200	Ductile Iron	Grooved	Class 125	692.00	752.00
YS58G-DI	YS58G-DI	2	YS58DG0250	Ductile Iron	Grooved	Class 125	897.00	975.00
YS58G-DI	YS58G-DI	3	YS58DG0300	Ductile Iron	Grooved	Class 125	950.00	1,032.00
YS58G-DI	YS58G-DI	4	YS58DG0400	Ductile Iron	Grooved	Class 125	1,160.00	1,259.00
YS58G-DI	YS58G-DI	5	YS58DG0500	Ductile Iron	Grooved	Class 125	1,962.00	2,130.00
YS58G-DI	YS58G-DI	6	YS58DG0600	Ductile Iron	Grooved	Class 125	2,660.00	2,888.00
YS58G-DI	YS58G-DI	8	YS58DG0800	Ductile Iron	Grooved	Class 125	4,042.00	4,388.00
YS58G-DI	YS58G-DI	10	YS58DG1000	Ductile Iron	Grooved	Class 125	7,110.00	7,717.00
YS58G-DI	YS58G-DI	12	YS58DG1200	Ductile Iron	Grooved	Class 125	11,328.00	12,295.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
