Name: YS58U-DI
SKU: YS58U-DI
Availability: InStock

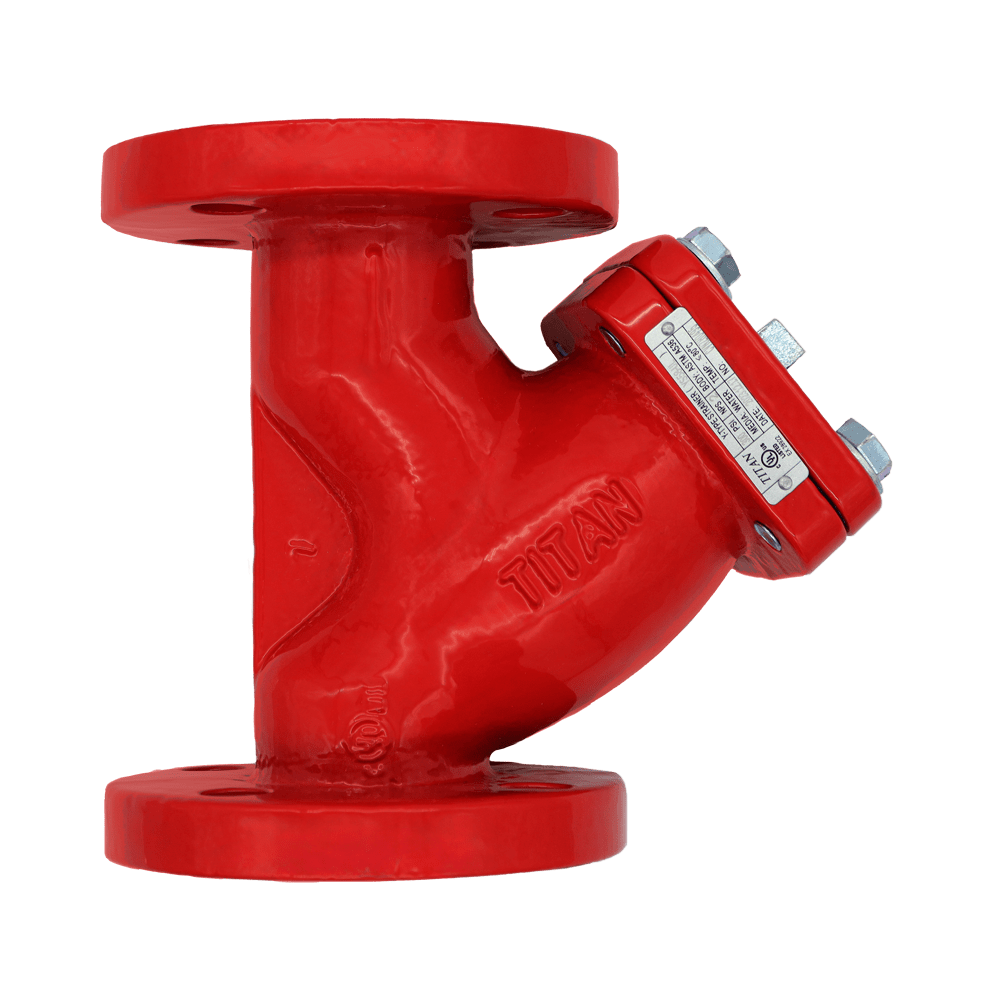

YS58U-DI

Y Strainer Specification

Body Material: Ductile Iron (A395)
End Connection: Flanged - FF Ends
ASME Rating: Class 150
Size Range: 2 in ~ 12 in

Pressure Rating

Ductile Iron - ASTM A536 - Class 150

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

UL Certifications
Epoxy Coating
Flanged End Design
Large Straining Capacity
Rugged Construction
Self-Cleaning Capability
Standardly Configured for Fire Protection

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS58U-DI	YS58U-DI	2	YS58UD0200	Ductile Iron	Flanged	Class 125	295.00	325.00
YS58U-DI	YS58U-DI	2	YS58UD0250	Ductile Iron	Flanged	Class 125	384.00	423.00
YS58U-DI	YS58U-DI	3	YS58UD0300	Ductile Iron	Flanged	Class 125	452.00	497.00
YS58U-DI	YS58U-DI	4	YS58UD0400	Ductile Iron	Flanged	Class 125	739.00	813.00
YS58U-DI	YS58U-DI	5	YS58UD0500	Ductile Iron	Flanged	Class 125	1,147.00	1,261.00
YS58U-DI	YS58U-DI	6	YS58UD0600	Ductile Iron	Flanged	Class 125	1,529.00	1,680.00
YS58U-DI	YS58U-DI	8	YS58UD0800	Ductile Iron	Flanged	Class 125	2,582.00	2,836.00
YS58U-DI	YS58U-DI	10	YS58UD1000	Ductile Iron	Flanged	Class 125	4,510.00	4,953.00
YS58U-DI	YS58U-DI	12	YS58UD1200	Ductile Iron	Flanged	Class 125	6,445.00	7,078.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
