Name: YS59-CI
SKU: YS59-CI
Availability: InStock

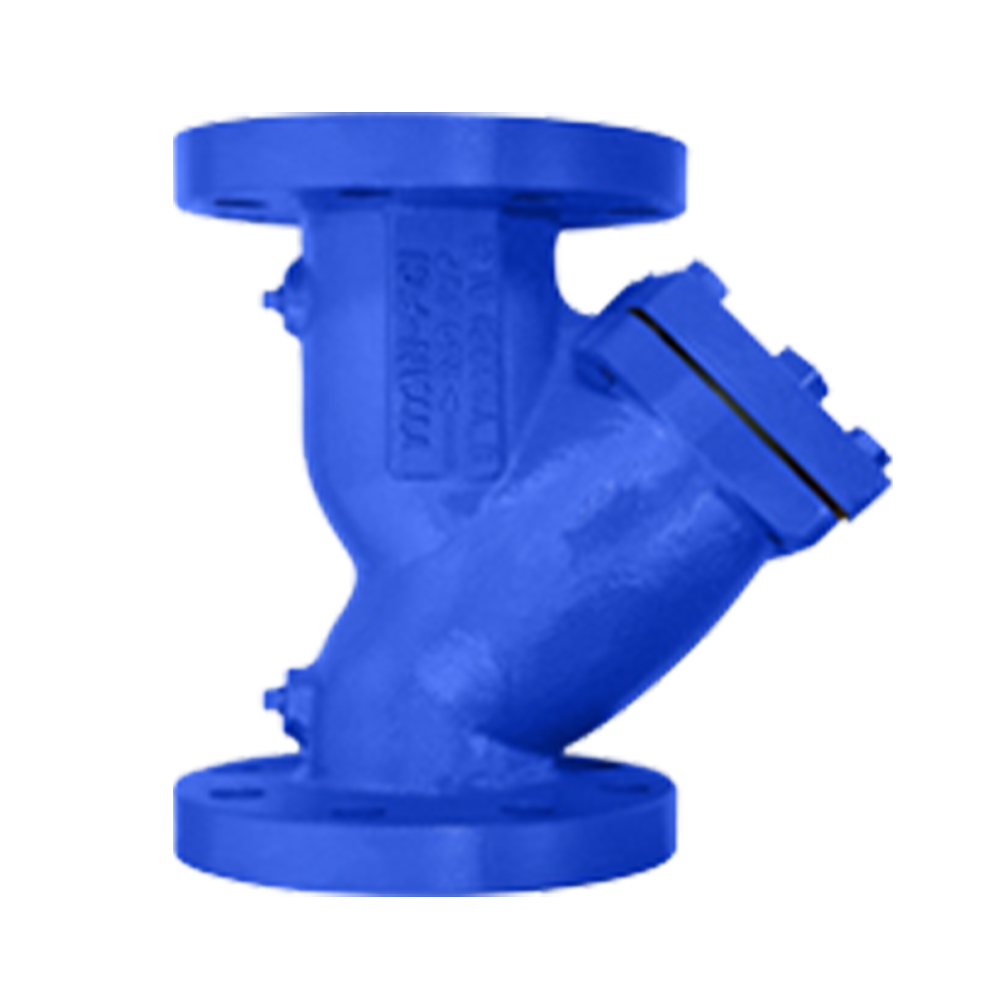

YS59-CI

Y Strainer Specification

Body Material: Cast Iron (A126 Gr. B)
End Connection: Flanged - RF Ends
ASME Rating: Class 250
Size Range: 2 in ~ 12 in

Pressure Rating

Cast Iron - ASTM A126 Gr. B - Class 250

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Large Straining Capacity
Precision Machined Seats
Self-Cleaning Capability
Epoxy Painted
Optional Cover Designs
Natural Gas Applications

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS59-CI	YS59-CI	2	YS59I0200	Cast Iron	Flanged	Class 300	623.00	661.00
YS59-CI	YS59-CI	2	YS59I0250	Cast Iron	Flanged	Class 300	761.00	807.00
YS59-CI	YS59-CI	3	YS59I0300	Cast Iron	Flanged	Class 300	973.00	1,032.00
YS59-CI	YS59-CI	4	YS59I0400	Cast Iron	Flanged	Class 300	1,462.00	1,550.00
YS59-CI	YS59-CI	5	YS59I0500	Cast Iron	Flanged	Class 300	2,387.00	2,531.00
YS59-CI	YS59-CI	6	YS59I0600	Cast Iron	Flanged	Class 300	2,801.00	2,970.00
YS59-CI	YS59-CI	8	YS59I0800	Cast Iron	Flanged	Class 300	4,581.00	4,856.00
YS59-CI	YS59-CI	10	YS59I1000	Cast Iron	Flanged	Class 300	8,934.00	9,471.00
YS59-CI	YS59-CI	12	YS59I1200	Cast Iron	Flanged	Class 300	13,224.00	14,018.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
