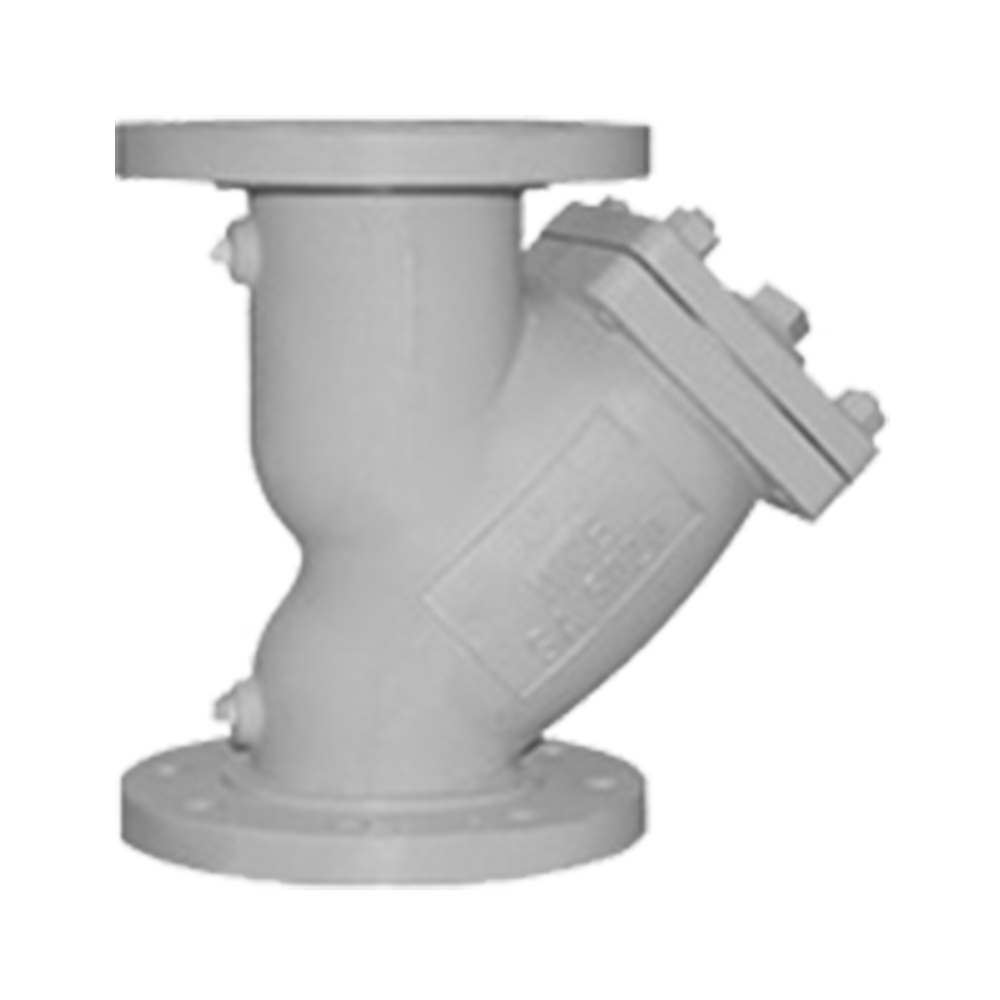

YS62-CS

Y Strainer Specification

Body Material: Carbon Steel (A216 Gr. WCB)
End Connection: Flanged - RF Ends
ASME Rating: Class 300
Size Range: 1/2 in ~ 16 in

Pressure Rating

Carbon Steel - ASTM A216 Gr. WCB - Class 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

New Design with Inlet and Outlet Gauge Taps
Large Straining Capacity
Precision Machined Seats
Self-Cleaning Capability
Epoxy Painted
Optional Cover Designs

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS62-CS	YS62-CS	0	YS62C0050	Carbon Steel	Flanged	Class 300	1,067.00	1,148.00
YS62-CS	YS62-CS	0	YS62C0075	Carbon Steel	Flanged	Class 300	1,348.00	1,449.00
YS62-CS	YS62-CS	1	YS62C0100	Carbon Steel	Flanged	Class 300	1,359.00	1,462.00
YS62-CS	YS62-CS	1	YS62C0125	Carbon Steel	Flanged	Class 300	1,803.00	1,939.00
YS62-CS	YS62-CS	1	YS62C0150	Carbon Steel	Flanged	Class 300	1,820.00	1,956.00
YS62-CS	YS62-CS	2	YS62C0200	Carbon Steel	Flanged	Class 300	1,828.00	1,965.00
YS62-CS	YS62-CS	2	YS62C0250	Carbon Steel	Flanged	Class 300	1,853.00	1,993.00
YS62-CS	YS62-CS	3	YS62C0300	Carbon Steel	Flanged	Class 300	1,867.00	2,008.00
YS62-CS	YS62-CS	4	YS62C0400	Carbon Steel	Flanged	Class 300	3,027.00	3,253.00
YS62-CS	YS62-CS	5	YS62C0500	Carbon Steel	Flanged	Class 300	4,538.00	4,941.00
YS62-CS	YS62-CS	6	YS62C0600	Carbon Steel	Flanged	Class 300	5,837.00	6,322.00
YS62-CS	YS62-CS	8	YS62C0800	Carbon Steel	Flanged	Class 300	9,572.00	10,285.00
YS62-CS	YS62-CS	10	YS62C1000	Carbon Steel	Flanged	Class 300	16,372.00	17,592.00
YS62-CS	YS62-CS	12	YS62C1200	Carbon Steel	Flanged	Class 300	27,958.00	30,041.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
