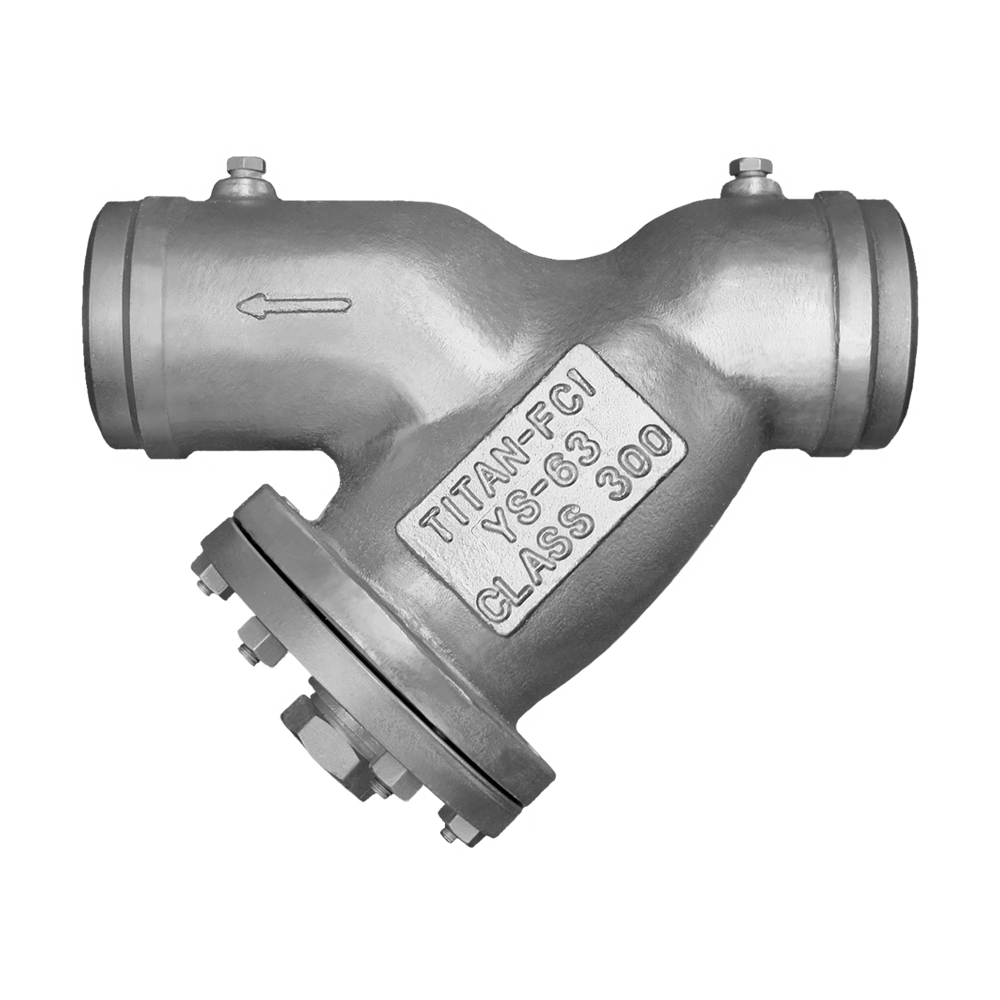

YS63-SS

Y Strainer Specification

Body Material: Stainless Steel (A351 Gr. CF8M)
End Connection: Butt Weld Ends
ASME Rating: Class 300
Size Range: 1/2 in ~ 12 in

Pressure Rating

Stainless Steel - ASTM A351 Gr. CF8M - Class 300

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Large Straining Capacity
Precision Machined Seats
Self Cleaning Capability
Epoxy Painted
Optional Cover Designs
Gauge Taps Available

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS63-SS	YS63-SS	2	YS63S0200	Stainless Steel	Butt Weld	Class 300	2,276.00	2,446.00
YS63-SS	YS63-SS	2	YS63S0250	Stainless Steel	Butt Weld	Class 300	3,639.00	3,911.00
YS63-SS	YS63-SS	3	YS63S0300	Stainless Steel	Butt Weld	Class 300	4,006.00	4,306.00
YS63-SS	YS63-SS	4	YS63S0400	Stainless Steel	Butt Weld	Class 300	7,275.00	7,818.00
YS63-SS	YS63-SS	6	YS63S0600	Stainless Steel	Butt Weld	Class 300	14,734.00	15,834.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
