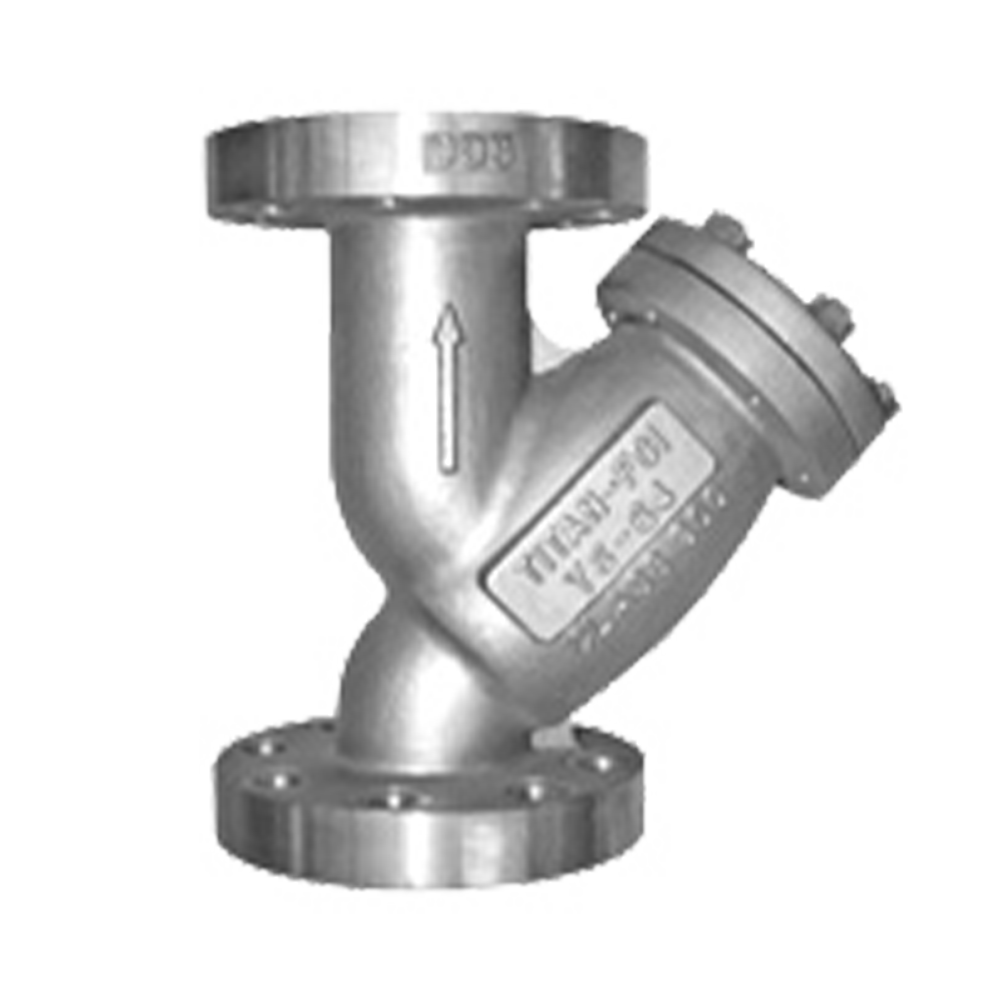

YS64-SS Stainless Steel Y (Wye) Strainer

YS64-SS

Y Strainer Specification

Body Material: Stainless Steel (A351 Gr. CF8M)
End Connection: Flanged - RF Ends
ASME Rating: Class 600
Size Range: 1/2 in ~ 12 in

Pressure Rating

Stainless Steel - ASTM A351 Gr. CF8M - Class 600

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

New Design with Gauge Taps
Large Straining Capacity
Precision Machined Seats
Self-Cleaning Capability
Epoxy Painted
Optional Cover Designs

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS64-SS	YS64-SS	0	YS64S0050	Stainless Steel	Flanged	Class 600	1,974.00	2,093.00
YS64-SS	YS64-SS	0	YS64S0075	Stainless Steel	Flanged	Class 600	2,493.00	2,643.00
YS64-SS	YS64-SS	1	YS64S0100	Stainless Steel	Flanged	Class 600	2,518.00	2,670.00
YS64-SS	YS64-SS	1	YS64S0125	Stainless Steel	Flanged	Class 600	3,273.00	3,470.00
YS64-SS	YS64-SS	1	YS64S0150	Stainless Steel	Flanged	Class 600	3,724.00	3,948.00
YS64-SS	YS64-SS	2	YS64S0200	Stainless Steel	Flanged	Class 600	4,857.00	5,149.00
YS64-SS	YS64-SS	2	YS64S0250	Stainless Steel	Flanged	Class 600	7,624.00	8,082.00
YS64-SS	YS64-SS	3	YS64S0300	Stainless Steel	Flanged	Class 600	9,460.00	10,028.00
YS64-SS	YS64-SS	4	YS64S0400	Stainless Steel	Flanged	Class 600	13,806.00	14,635.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
