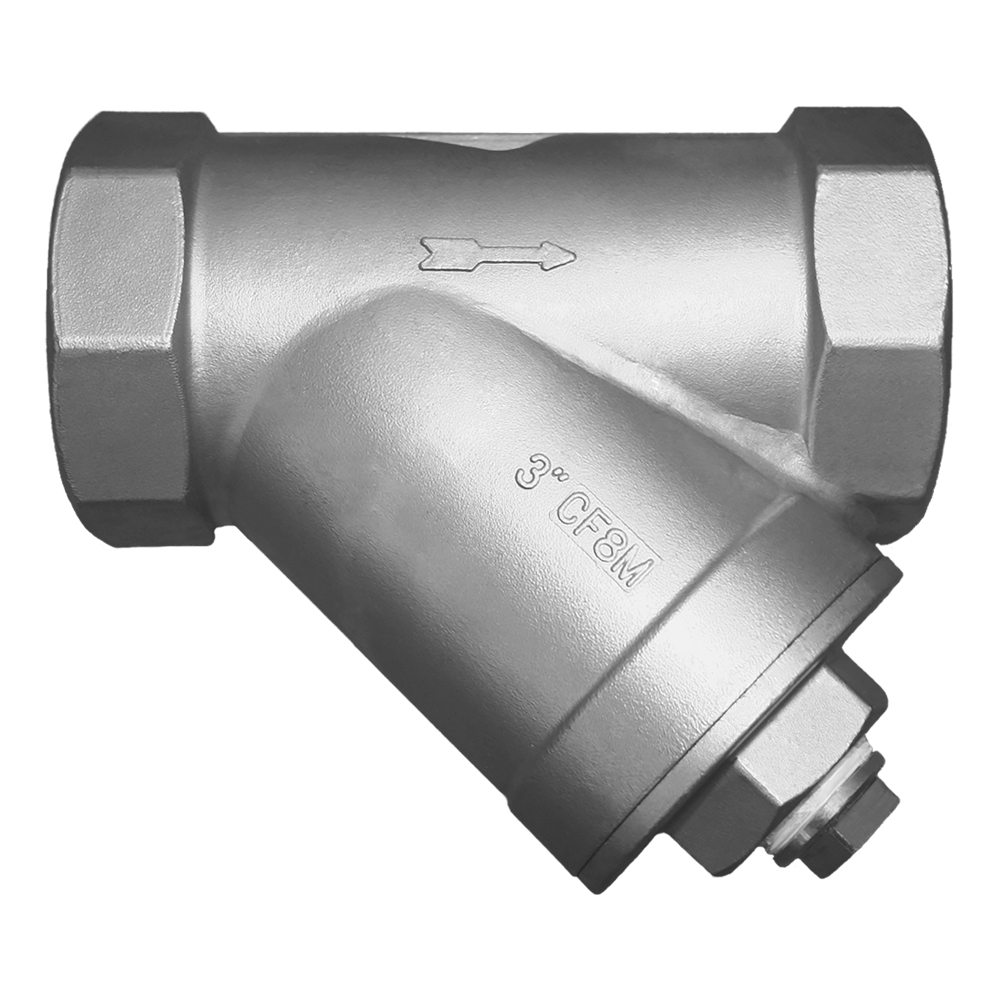

YS80T-SS Stainless Steel Y (Wye) Strainer

YS80T-SS

Y Strainer Specification

Body Material: Stainless Steel (A351 Gr. CF8M)
End Connection: Threaded Ends
ASME Rating: 800 WOG
Size Range: 1/4 in ~ 3 in

Pressure Rating

Stainless Steel - ASTM A351 Gr. CF8M - 800 WOG

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Large Straining Capacity
Precision Machined Seats
Self Cleaning Capability (Threaded Cap)
Socket Weld and Threaded Ends

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS80T-SS	YS80T-SS	0	YS80TS0025	Stainless Steel	Threaded	Class 800	119.00	127.00
YS80T-SS	YS80T-SS	0	YS80TS0038	Stainless Steel	Threaded	Class 800	119.00	127.00
YS80T-SS	YS80T-SS	0	YS80TS0050	Stainless Steel	Threaded	Class 800	119.00	127.00
YS80T-SS	YS80T-SS	0	YS80TS0075	Stainless Steel	Threaded	Class 800	212.00	225.00
YS80T-SS	YS80T-SS	1	YS80TS0100	Stainless Steel	Threaded	Class 800	279.00	296.00
YS80T-SS	YS80T-SS	1	YS80TS0125	Stainless Steel	Threaded	Class 800	317.00	337.00
YS80T-SS	YS80T-SS	1	YS80TS0150	Stainless Steel	Threaded	Class 800	424.00	450.00
YS80T-SS	YS80T-SS	2	YS80TS0200	Stainless Steel	Threaded	Class 800	579.00	614.00
YS80T-SS	YS80T-SS	2	YS80TS0250	Stainless Steel	Threaded	Class 800	948.00	1,005.00
YS80T-SS	YS80T-SS	3	YS80TS0300	Stainless Steel	Threaded	Class 800	1,467.00	1,556.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
