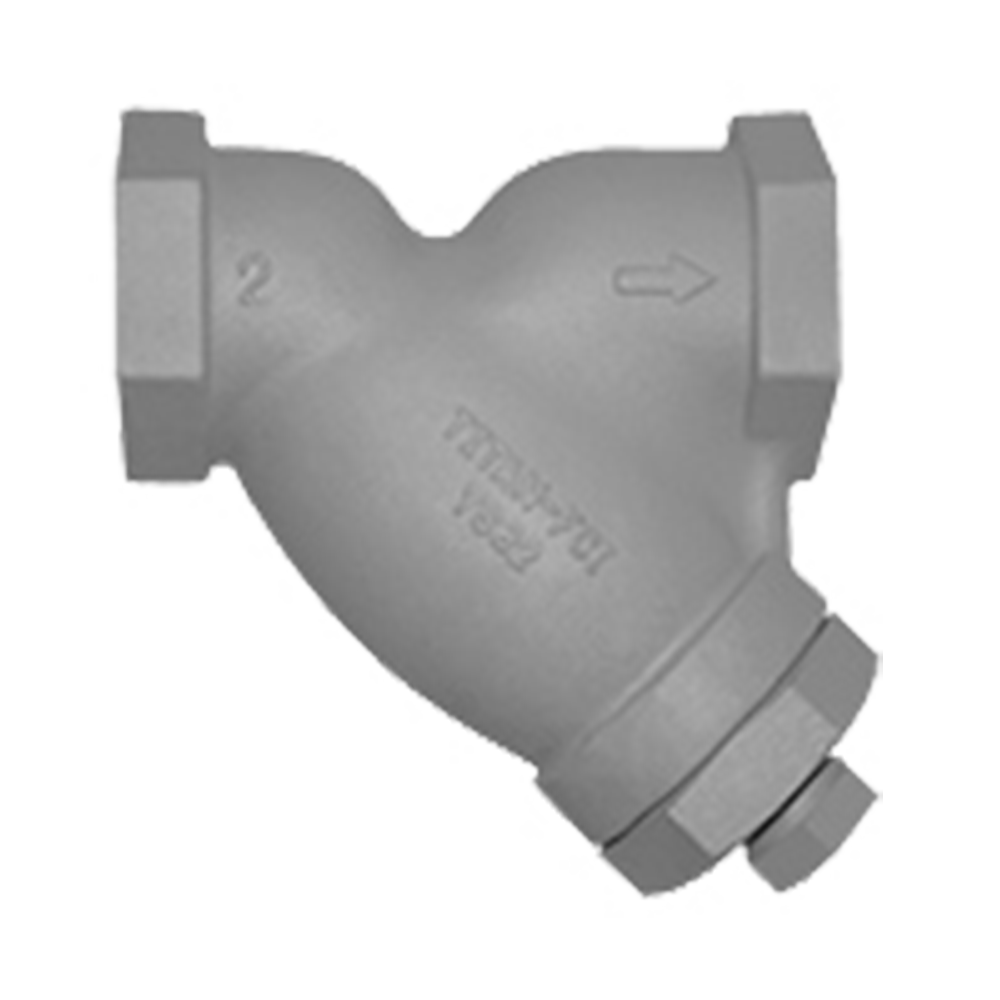

YS82-CS Carbon Steel Y (Wye) Strainer

YS82-CS

Y Strainer Specification

Body Material: Carbon Steel (A216 Gr. WCB)
End Connection: Socket Weld Ends
ASME Rating: Class 600
Size Range: 1/4 in ~ 2 in

Pressure Rating

Carbon Steel - ASTM A216 Gr. WCB - Class 600

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Cap Cover (1/4 ~ 2)
Rugged - High Quality Design
Large Straining Capacity
Precision Machined Seats
Self Cleaning Capability
Epoxy Painted

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS82-CS	YS82-CS	0	YS82C0025	Carbon Steel	Socket	Class 600	159.00	169.00
YS82-CS	YS82-CS	0	YS82C0038	Carbon Steel	Socket	Class 600	159.00	169.00
YS82-CS	YS82-CS	0	YS82C0050	Carbon Steel	Socket	Class 600	159.00	169.00
YS82-CS	YS82-CS	0	YS82C0075	Carbon Steel	Socket	Class 600	174.00	185.00
YS82-CS	YS82-CS	1	YS82C0100	Carbon Steel	Socket	Class 600	249.00	264.00
YS82-CS	YS82-CS	1	YS82C0125	Carbon Steel	Socket	Class 600	325.00	345.00
YS82-CS	YS82-CS	1	YS82C0150	Carbon Steel	Socket	Class 600	454.00	482.00
YS82-CS	YS82-CS	2	YS82C0200	Carbon Steel	Socket	Class 600	751.00	797.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
