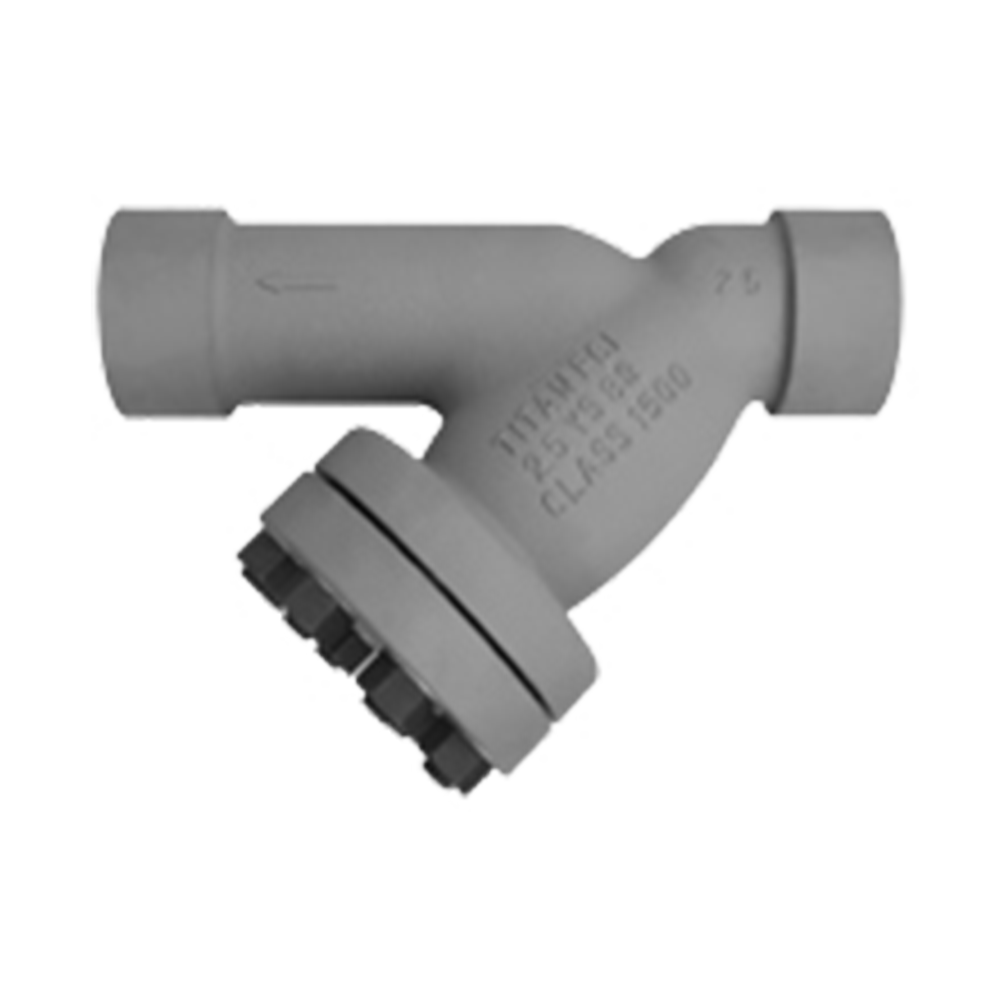

YS84-CS Carbon Steel Y (Wye) Strainer

YS84-CS

Y Strainer Specification

Body Material: Carbon Steel (A216 Gr. WCB)
End Connection: Socket Weld Ends
ASME Rating: Class 1500
Size Range: 1/2 in ~ 3 in

Pressure Rating

Carbon Steel - ASTM A216 Gr. WCB - Class 1500

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

Part Number

General Information

Product Features

Rugged - High Quality Design
Large Straining Capacity
Precision Machined Seats
Encapsulated 'CG' Style Gasket
Self Cleaning Capability
Epoxy Painted

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

If you are human, leave this field blank.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS84-CS	YS84-CS	0	YS84C0050	Carbon Steel	Socket	Class 1500	739.00	784.00
YS84-CS	YS84-CS	0	YS84C0075	Carbon Steel	Socket	Class 1500	884.00	938.00
YS84-CS	YS84-CS	1	YS84C0100	Carbon Steel	Socket	Class 1500	1,170.00	1,241.00
YS84-CS	YS84-CS	1	YS84C0125	Carbon Steel	Socket	Class 1500	2,631.00	2,789.00
YS84-CS	YS84-CS	1	YS84C0150	Carbon Steel	Socket	Class 1500	2,748.00	2,913.00
YS84-CS	YS84-CS	2	YS84C0200	Carbon Steel	Socket	Class 1500	3,048.00	3,231.00
YS84-CS	YS84-CS	2	YS84C0250	Carbon Steel	Socket	Class 1500	4,826.00	5,116.00
YS84-CS	YS84-CS	3	YS84C0300	Carbon Steel	Socket	Class 1500	5,136.00	5,445.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."

Part Number

Available Soon - Check Back Often
